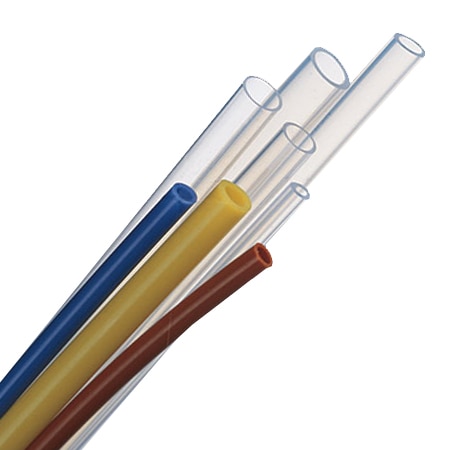

OMEGA TYTT-516316-100 OMEGAFLEX™ Chemical Tubing PTFE Formulation (0.3125 in, 3200 psi, 100 ft)
ຜູ້ຜະລິດ: OMEGA Model: TYTT-516316-100 - ຕິດຕໍ່ພົວພັນ
ASTM: 3295
Hardness: Durometer 50D to 55D
Materials: PTFE (Polytetrafluoroethylene)
Tube Length: 100 ft
Color Options: N/A
Wall Thickness: 0.0938 in
Bend Radius, Min: 8x OD
Specific Gravity: 2.13-2.2
Tensile Strength: 3200 psi
Brittle Temperature: -170 °C
Elongation at Break: 250-450%
Tubing Inner Diameter: 0.1875 in
Tubing Outer Diameter: 0.3125 in
Operating Pressure Note: psi @73°F
Operating Pressure, Max: 255 psi
Operating Pressure, Min: 0 psi
Tubing Diameter Tolerance: ± 0.005 in
Operating Temperature, Max: 260 °C
Operating Temperature, Min: -79 °C
