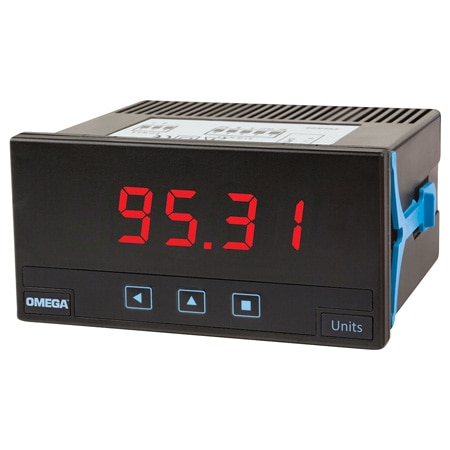

OMEGA DP20-S1-A2 Panel Meter - 1/8 in DIN, Temperature, Process (J, K, T, E, R, S, B, C, N, L, 1/8 DIN, 3.5 Digit LED)

Weight: 150 g

Digit Size: 14 mm

Input Type: Thermocouple, RTD, Thermistor, Current, Voltage, DC or AC, Resistance, Frequency

Probe Type: Resistive ‘Pt’ Probes: Pt100 with 2 and 3 wires, Pt500, Pt1000 Resistive ‘Ni’ Probes: Ni100, Ni200, Ni1000 Resistive NTC Probes: See table at page 4 Resistive PTC Probes: Families KTY-121, KTY-210 and KTY-220

Form factor: 1/8 DIN

Applications: Assembly Line, Control Panel, Laboratories and Scientific

Display Type: 3.5 Digit LED

Reading Rate: 3/sec

Display Range: -1999 to 9999

Output Detail: 1 Modbus RTU isolated serial output 1 Relay

Response Time: <300 ms. (0 % to 99 % of signal)

Sampling Rate: 3 Hz (3 updates/second)

Control Output: SPDT Relay

Data Interface: Modbus RTU

Decimal Points: Configurable

Supply Voltage: 18 to 264 Vac/Vdc

Measuring Range: Thermocouple: Type K: -100 to 1350 °C;Type J: -100 to 1200 °C;Type E: -100 to 1000 °C;Type N: -100 to 1300 °C;Type L: -100 to 900 °C;Type R: 0 to 1768 °C;Type S: 0 to 1768 °C;Type T: -100 to 400 °C;Type C: 0 to 2300 °C;Type B: 700 to 1820 °C ;RTD: Pt100(3 wires): 200 to 700 °C ;Pt100(2 wires): 200 to 700 °C ;Pt500: -150 to 630 °C ;Pt1000: -190 to 630 °C ;Ni100: -60 to 180 °C ;Ni200: -60 to 120 °C ;Ni1000: -60 to 180 °C ;Resistance: 0 to 5K: from 9999 to -1999;0 to 50K: from 9999 to -1999;Potentiometers Nominal Value: 500 R to 20 K: from 9999 to -1999;Frequency: 15 Hz to 100 Hz: from 9999 to -1999; Signal Ranges: AC Voltages and AC Currents: 600 Vac, 200 Vac, 20 Vac, 2 Vac, 200 mVac, 60 mVac, 5 Aac, 20 mAac (True RMS measure) (accepts phase-neutral and phase-phase measure) ;DC Voltages and DC Currents: ± 600 Vdc, ± 200 Vdc, ± 20 Vdc, ± 2 Vdc, ± 200 mVdc, ± 60 mVdc, ± 5 Adc, ± 20 mAdc;Refer Tables for more information; Analog Input: 4 to 20 mA, 0 to 10 Vdc

Thermal Effects: 150 ppm/°C

Number of Inputs: 1

Analog Input Note: 4 to 20 mA, 0 to 10 Vdc (+15 Vdc excitation voltage configurable at terminal 5)

Enclosure Ratings: IP65, NEMA Type 4

Power Consumption: 2.5 W

Supply Power Note: 18 to 265 Vac/dc (isolated 1500 Veff @ 60 seconds)

Supply Power Type: AC/DC

Thermocouple Type: J, K, T, E, R, S, B, C, N, L

Electrical Connection: Screw Terminal

Retransmission Output: N/A

Span Temperature Drift: 150 ppm/°C

Sensor/Transmitter Power: 15 Vdc

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C

Resistance Measurement Range: Up to 20 KΩ
