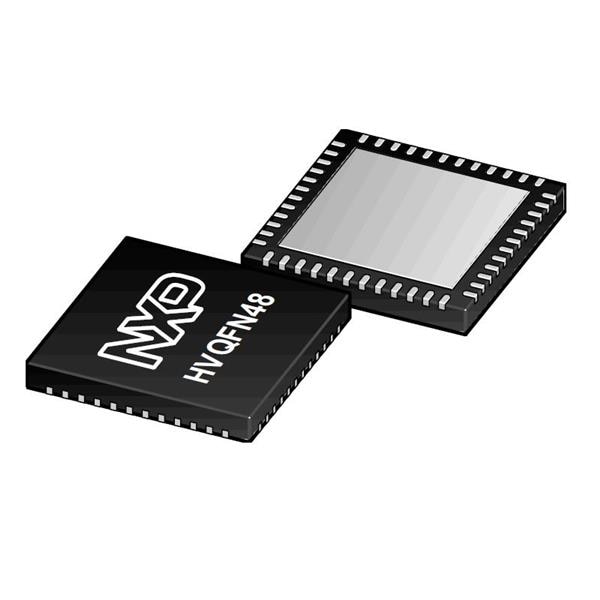

NXP QN9080-001-M17AZ USB Adapter QN9080-001-M17
ຜູ້ຜະລິດ: NXP Model: QN9080-001-M17AZ - ຕິດຕໍ່ພົວພັນ
Core: ARM Cortex M4F
Class: Bluetooth Low Energy (BLE)
Antenna: Integrated
Data Rate: 1 Mb/s
Frequency: 2.4 GHz
Dimensions: 9.7 mm x 6 mm x 1.17 mm
Memory Size: 128 kB, 512 kB
Sensitivity: - 92.7 dBm
Unit Weight: 127.171 mg
Output Power: 2 dBm
Interface Type: I2C, SPI, USART, USB
Mounting Style: SMD/SMT
Moisture Sensitive: Yes
Protocol - Sub GHz: NFC
Modulation Technique: GFSK
Receiver Sensitivity: - 92.7 dBm
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.67 V
Antenna Connector Type: Integrated
Operating Supply Voltage: 3 V
Supply Current Receiving: 4 mA
Supply Current Transmitting: 3.5 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.0
