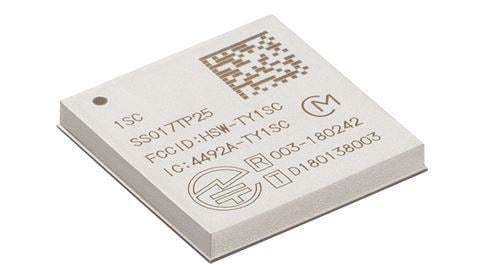

Murata Electronics LBAD0XX1SC-151 Cellular Modules Type 1SC M1/NB-IoT module
ຜູ້ຜະລິດ: Murata Electronics Model: LBAD0XX1SC-151 - ຕິດຕໍ່ພົວພັນ
Frequency: 699 MHz to 960 MHz
Dimensions: 11.4 mm x 11.1 mm x 1.4 mm
Output Power: 23 dBm
Interface Type: UART
Mounting Style: SMD/SMT
Moisture Sensitive: Yes
Number of Channels: 1 Channel
Supply Voltage - Max: 1.9 V
Supply Voltage - Min: 1.7 V
Antenna Connector Type: External
Protocol - GPS, GLONASS: GLONASS, GPS
Operating Supply Voltage: 1.8 V
Supply Current Receiving: 90 mA
Supply Current Transmitting: 400 mA, 800 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
