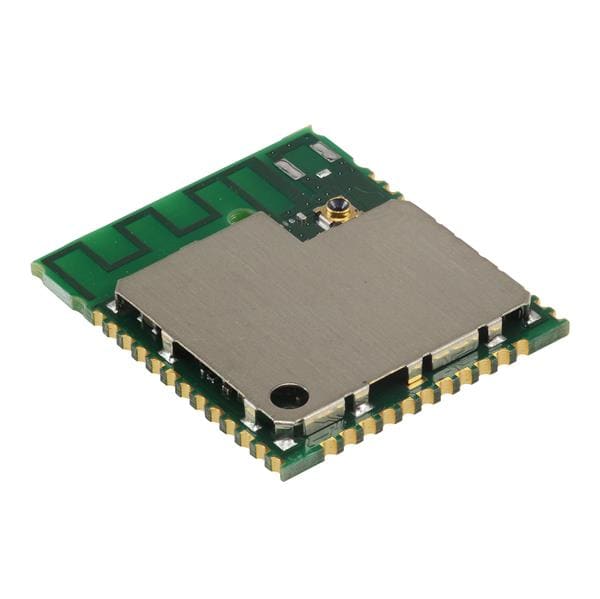

Murata Electronics CMWC1ZZABR-107 WiFi Modules Type ABR Shielded Small Wi-Fi 11b/g/n + MCU Module
ຜູ້ຜະລິດ: Murata Electronics Model: CMWC1ZZABR-107 - ຕິດຕໍ່ພົວພັນ
Data Rate: 11 Mb/s, 54 Mb/s, 72.2 Mb/s
Frequency: 2.4 GHz
Dimensions: 22 mm x 19 mm x 2.4 mm
Output Power: 15 dBm, 17 dBm
Qualification: AWS
Interface Type: GPIO, JTAG, UART
Moisture Sensitive: Yes
Protocol Supported: 802.11 b/g/n
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 3 V
Operating Supply Voltage: 3 V to 3.6 V
Supply Current Receiving: 83 mA
Supply Current Transmitting: 282 mA, 285 mA, 303 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
