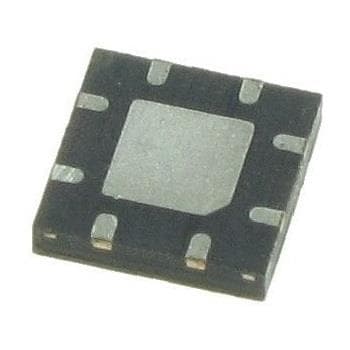

Monolithic Power Systems (MPS) MP2013AGQ-Z Low Dropout Linear Regulator 40V,150mA,Low Quiescent Current Linear Regulator
ຜູ້ຜະລິດ: Monolithic Power Systems (MPS) Model: MP2013AGQ-Z - ຕິດຕໍ່ພົວພັນ
Polarity: Positive
Output Type: Adjustable
Mounting Style: SMD/SMT
Output Current: 150 mA
Output Voltage: 1.215 V to 15 V
Dropout Voltage: 620 mV
Line Regulation: 0.05 %/V
Load Regulation: 0.01 %/mA
Number of Outputs: 1 Output
Quiescent Current: 3.2 uA
Input Voltage - Max: 40 V
Input Voltage - Min: 2.5 V
Dropout Voltage - Max: 850 mV
Pd - Power Dissipation: 2.08 W
Voltage Regulation Accuracy: 2 %
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
PSRR / Ripple Rejection - Typ: 41 dB
