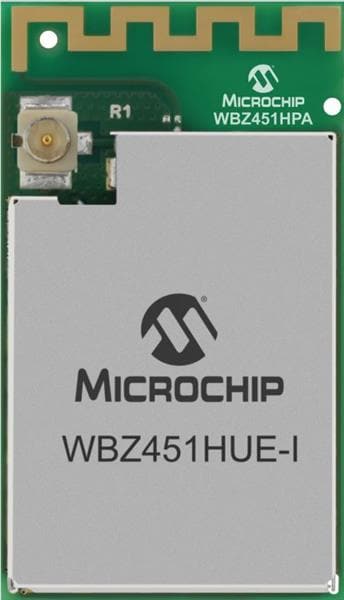

Microchip Technology WBZ451HUE-I Multiprotocol Modules Bluetooth Low Energy/Zigbee Combo Module with PCB Antenna
ຜູ້ຜະລິດ: Microchip Technology Model: WBZ451HUE-I - ຕິດຕໍ່ພົວພັນ
Core: PIC32BZ
Data Rate: 2 Mb/s
Frequency: 64 MHz
Dimensions: 26.8 mm x 15.5 mm x 2.8 mm
Output Power: 20 dBm
Mounting Style: PCB Mount
Receiver Sensitivity: - 104 dBm
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.9 V
Antenna Connector Type: u.FL
Operating Supply Current: 1.5 uA
Operating Supply Voltage: 1.9 V to 3.6 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
Protocol - ANT, Thread, Zigbee - 802.15.4: Thread, Zigbee
