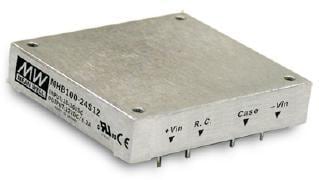

MEAN WELL MHB100-24S12 Isolated 100W 24Vin 12Vout 20A Half-Brick
ຜູ້ຜະລິດ: MEAN WELL Model: MHB100-24S12 - ຕິດຕໍ່ພົວພັນ
Width: 57.9 mm (2.28 in)
Height: 12.7 mm (0.5 in)
Length: 61 mm (2.402 in)
Industry: Industrial
Unit Weight: 95 g
Output Power: 100 W
Input Voltage: 18 V to 36 V
Mounting Style: Through Hole
Isolation Voltage: 1.5 kV
Number of Outputs: 1 Output
Input Voltage - Max: 36 V
Input Voltage - Min: 18 V
Input Voltage, Nominal: 24 V
Output Current-Channel 1: 8.3 A
Output Voltage-Channel 1: 12 V
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
