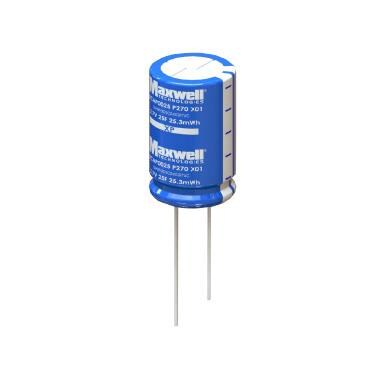

Maxwell Technologies BCAP0025 P270 X01 Cylindrical 2.7V, 25F, wire lead XP
ຜູ້ຜະລິດ: Maxwell Technologies Model: BCAP0025 P270 X01 - ຕິດຕໍ່ພົວພັນ
ESR: 15 mOhms
Life: 1500 Hour, 500000 Cycle
Height: 25.5 mm
Length: 25.5 mm
Diameter: 16 mm
Tolerance: - 10 %, + 20 %
Capacitance: 25 F
Orientation: Vertical
Unit Weight: 6.800 g
Lead Spacing: 7.5 mm
Lead Diameter: 0.8 mm
Current Rating: 20.7 A
Leakage Current: 49 uA
Termination Style: Radial
Voltage Rating DC: 2.7 VDC
Maximum Operating Temperature: + 65 C
Minimum Operating Temperature: - 40 C
