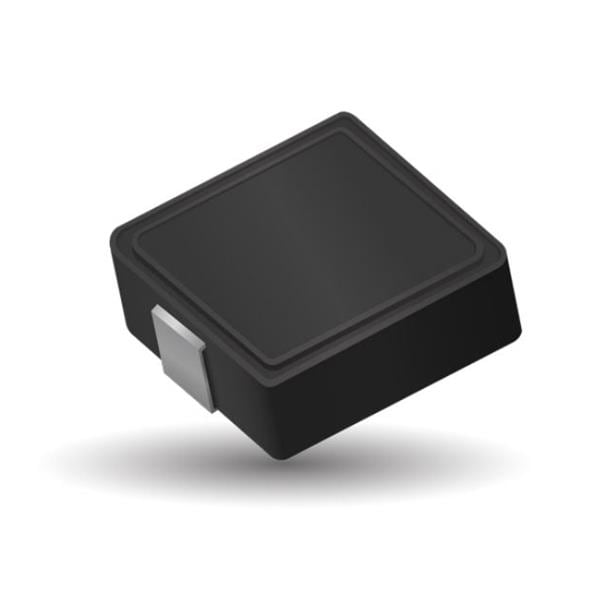

KYOCERA AVX LMLP07A7M100DTAS High Power Inductor 10uH DCR= 68mOhm 20% 07A7
ຜູ້ຜະລິດ: KYOCERA AVX Model: LMLP07A7M100DTAS - ຕິດຕໍ່ພົວພັນ
Width: 6.6 mm
Height: 3 mm
Length: 7.3 mm
Shielding: Shielded
Tolerance: 20 %
Inductance: 10 uH
Application: High Current
Termination: Standard
Core Material: Iron Powder
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: SMD/SMT
Maximum DC Current: 4 A
Saturation Current: 5.5 A
Maximum DC Resistance: 68 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
