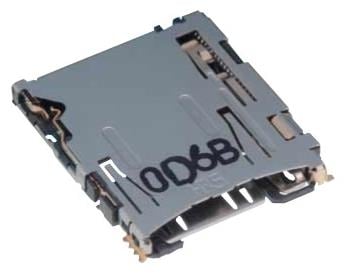

Hirose Electric DM3AT-SF-PEJM5 Card Connectors R/A SMT MICROSD CON PUSH-PUSH TOP BRDMNT
ຜູ້ຜະລິດ: Hirose Electric Model: DM3AT-SF-PEJM5 - ຕິດຕໍ່ພົວພັນ
Color: Black
Pitch: 1.1 mm
Height: 1.68 mm
Length: 13.85 mm
Card Type: microSD
Orientation: Right Angle
Unit Weight: 100 mg
Mating Cycles: 10000
Mounting Type: Standard
Current Rating: 500 mA
Mounting Style: PCB Mount
Number of Rows: 1 Row
Voltage Rating: 125 VAC
Contact Plating: Gold
Contact Material: Copper
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: SMD/SMT
Number of Contacts: 8 Contact
Flammability Rating: UL 94 V-0
Insulation Resistance: 1 GOhms
Insertion - Extraction Style: Push-Push
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
