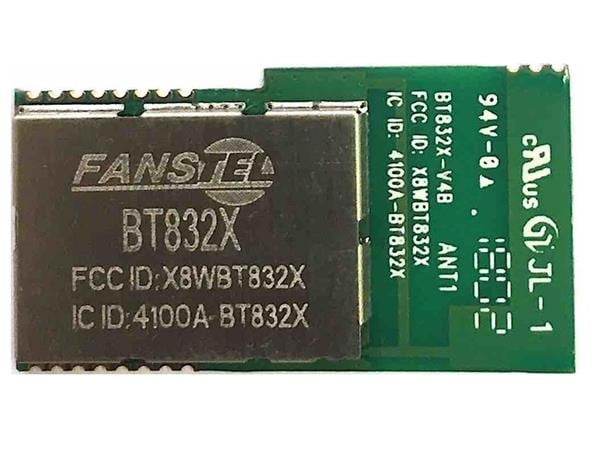

Fanstel BT832X Bluetooth Modules nRF52832 1170 Meters Bluetooth 5 Module
ຜູ້ຜະລິດ: Fanstel Model: BT832X - ຕິດຕໍ່ພົວພັນ
Core: ARM Cortex M4F
Range: 1170 m
Width: 28 mm
Height: 1.9 mm
Length: 15 mm
Antenna: Integrated Trace
Protocol: BLE, Bluetooth 5.0
Data Rate: 1 Mb/s
Frequency: 2.4 GHz
Shielding: Shielded
Dimensions: 15 mm x 28 mm x 1.9 mm
Memory Size: 64 kB, 512 kB
Sensitivity: - 96 dBm
Unit Weight: 7.792 g
Output Power: 20 dBm
Interface Type: I2C, SPI, UART
Mounting Style: SMD/SMT
Moisture Sensitive: Yes
Receiver Sensitivity: - 96 dBm
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.8 V
Operating Supply Voltage: 1.8 V to 3.6 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
