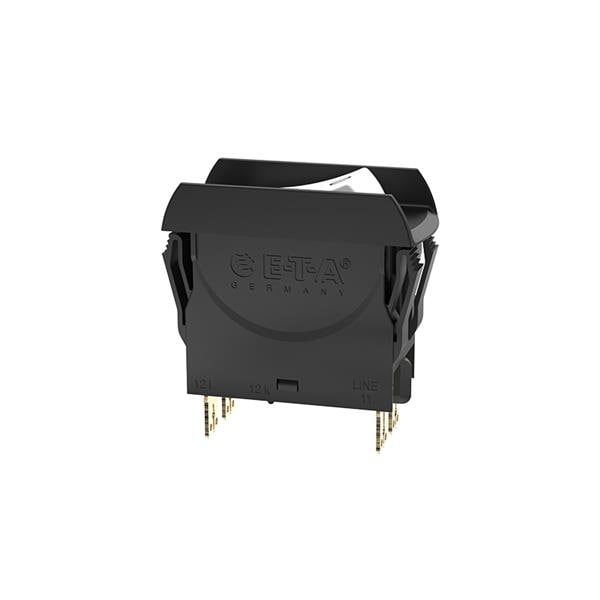

E-T-A Circuit Breakers 3120-N313-P7T1-W12FY3-20A Thermal Overcurrent The 3120-N thermal circuit breaker/switch combination unites overcurrent protection and the function of an ON/OFF switch within a single component. The trip element is a thermal bimetal. Type 3120-N is ideally suited for overload prot

ຜູ້ຜະລິດ: E-T-A Circuit Breakers
Model: 3120-N313-P7T1-W12FY3-20A
ຕິດຕໍ່ພົວພັນ
- ຂໍໃບສະເໜີລາຄາ

ຂໍ້ມູນສະເພາະ
ຂໍ້ມູນຜູ້ຜະລິດ

Illuminated: Illuminated

Unit Weight: 30 g

Actuator Type: Rocker

Current Rating: 20 A

Mounting Style: Snap-In

Voltage Rating: 50 VDC, 115 VAC

Number of Poles: 1 Pole

Termination Style: Blade

Voltage Rating AC: 115 VAC

Voltage Rating DC: 50 VDC

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 30 C
