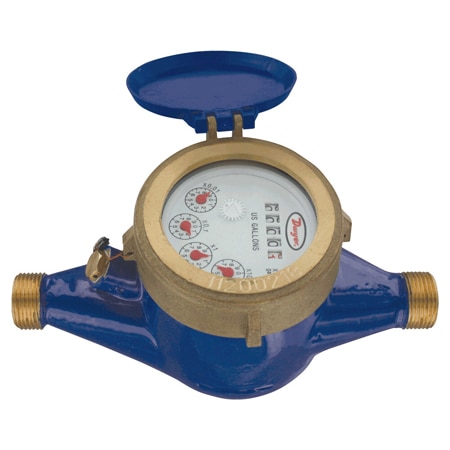

Dwyer WM2-A-C-06 Multi-Jet Water Meter, Pulsed Output, Totalizing Flow for Irrigation (NPT Male, 1 1/2 in)
ຜູ້ຜະລິດ: Dwyer Model: WM2-A-C-06 - ຕິດຕໍ່ພົວພັນ
Weight: 13.52 lb
Accuracy: ± 2 %, ± 5% with transitional flow
Pipe Size: 1 1/2 in
Pulse Rates: N/A
Proof Pressure: Up to 232 psi
Materials, Wetted: ABS, Acetal, Brass, Ferrite, Polyethylene
Transitional Flow: 1.5 GPM
Media Compatibility: Water
Mounting Orientation: Vertical
Nominal Flow Rate, Max: 100 gal/min
Process Connection Size: 1 1/2 in
Process Connection Type: NPT Male
Totalizing Display, Max: 99999999.9 gal
Volumetric Flow Rate, Max: 100 GPM
Volumetric Flow Rate, Min: 5 GPM
Operating Temperature, Max: 104 °F
