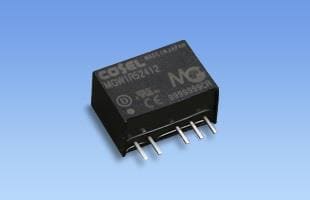

Cosel MGW1R54812 Isolated 1.56W 36-76Vin .065A +/-12 or 24Vout TH
ຜູ້ຜະລິດ: Cosel Model: MGW1R54812 - ຕິດຕໍ່ພົວພັນ
Width: 8.5 mm (0.335 in)
Height: 12 mm (0.472 in)
Length: 17 mm (0.669 in)
Industry: Industrial
Dimensions: 17 mm x 12 mm x 8.5 mm
Efficiency: 81 %
Unit Weight: 4 g
Output Power: 1.56 W
Input Voltage: 36 V to 76 V
Cooling Method: Convection, Air-Cooled
Mounting Style: Through Hole
Mechanical Style: Isolated
Isolation Voltage: 1.5 kV
Number of Outputs: 2 Output
Input Voltage - Max: 76 V
Input Voltage - Min: 36 V
Input Voltage, Nominal: 48 V
Output Current-Channel 1: 65 mA
Output Current-Channel 2: 65 mA
Output Voltage-Channel 1: 12 V
Output Voltage-Channel 2: 24 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
