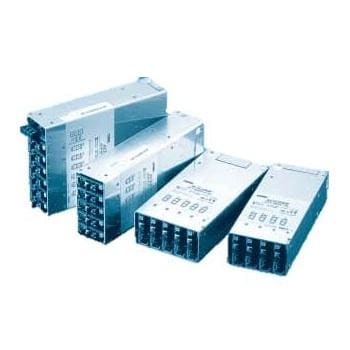

Cosel AC9-DDDDDD-00-1B Modular Power Supply 85-264VAC 120-350DC 900 W
ຜູ້ຜະລິດ: Cosel Model: AC9-DDDDDD-00-1B - ຕິດຕໍ່ພົວພັນ
Width: 177.55 mm
Height: 63.5 mm
Length: 254 mm
Industry: Medical, Industrial
Approvals: EN60950-1, UL60950-1
Compliance: EN60950-1, UL60950-1
Efficiency: 80 %
Unit Weight: 2.899 kg
Output Power: 900 W
Input Voltage: 85 VAC to 264 VAC, 120 VDC to 350 VDC
Mounting Style: Chassis
Input Frequency: 47 Hz to 63 Hz
Load Regulation: Regulated
Isolation Voltage: 3 kVrms
Number of Outputs: 6 Output
Open Frame/Enclosed: Enclosed
Output Current-Channel 1: 18 A
Output Current-Channel 2: 18 A
Output Current-Channel 3: 18 A
Output Current-Channel 4: 18 A
Output Current-Channel 5: 18 A
Output Current-Channel 6: 18 A
Output Voltage-Channel 1: 7.5 V
Output Voltage-Channel 2: 7.5 V
Output Voltage-Channel 3: 7.5 V
Output Voltage-Channel 4: 7.5 V
Output Voltage-Channel 5: 7.5 V
Output Voltage-Channel 6: 7.5 V
Operating Temperature Range: - 20 C to + 70 C
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 20 C
