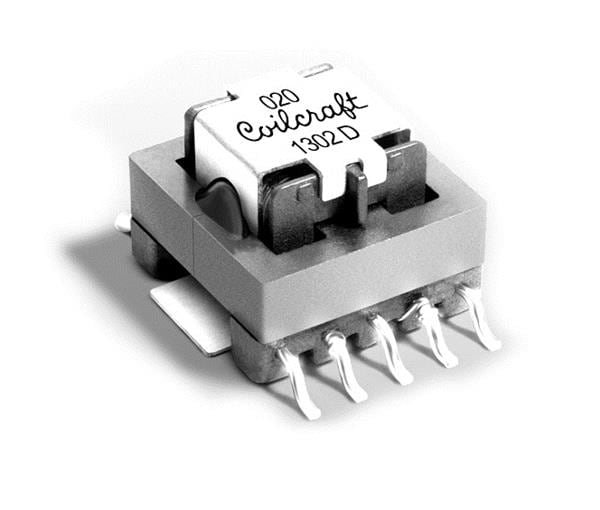

Coilcraft CST2010-060LD Current Transformers 40A 3.06mH 1.5 Ohms AEC-Q200
ຜູ້ຜະລິດ: Coilcraft Model: CST2010-060LD - ຕິດຕໍ່ພົວພັນ
Width: 14.55 mm
Height: 10.5 mm
Length: 19.91 mm
Inductance: 3.06 mH
Turns Ratio: 1:60
Unit Weight: 4.130 g
Qualification: AEC-Q200
Current Rating: 40 A
Mounting Style: SMD/SMT
Frequency Range: 3 kHz to 1 MHz
Termination Style: SMD/SMT
Voltage Time - Et: 152.4 V/us
Secondary Resistance: 850 mOhms
Operating Temperature Range: + 40 C to + 125 C
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: + 40 C
