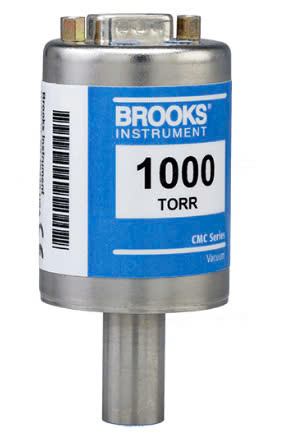

Brooks Instrument CMCA ເຄື່ອງວັດຄວາມກົດດັນແບບ Capacitance (50 Torr, ±0.25% of reading)
ຜູ້ຜະລິດ: Brooks Instrument Model: CMCA P/N: CMCA-T15-3-4-A-R - ຕິດຕໍ່ພົວພັນ
Electrical Connector: 15-pin sub D, 0-10 Vdc on 6" cable
Fitting: 8VCR® F
Performance
Full Scale Ranges: 10, 20 50, 100, 200 and 1000 Torr
Accuracy: Type A = 0.25% of reading; Type B = 0.5% of reading
Resolution: Infinite, limited by output noise (≤0.0006% F.S.)
Temp. Effect on Zero: 0.005% F.S. / °C
Temp. Effect on Span: 0.027% F.S. / °C
Response Time: 20 msec
Operating Temperature: 0 to 80°C
Compensated Temperature: 0 to 50°C
Mechanical
Exposed Materials: Inconel®
Over-Pressure Limit: 45 psia
Weight: 0.3 lbs. (137 grams)
Electrical
Input Power: +12 to 30 Vdc
Output Signal: 0-10 Vdc (<10K Ω load)
Power Consumption: <200 mW
Certifications
Electromagnetic Compatibility: Fully CE certified to EMC Directive 89/336/EEC
For more details, see datasheet.
