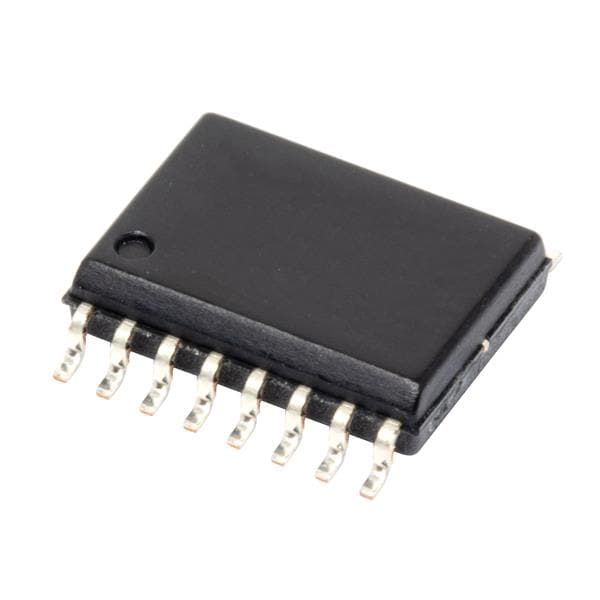

Analog Devices ADUM2402ARIZ-RL Standard QUAD-CHANNEL DIGITAL ISOLATORS. 5K
ຜູ້ຜະລິດ: Analog Devices Model: ADUM2402ARIZ-RL - ຕິດຕໍ່ພົວພັນ
Polarity: Bidirectional
Data Rate: 90 Mb/s
Pulse Width: 1000 ns
Unit Weight: 666 mg
Isolation Type: Magnetic Coupling
Mounting Style: SMD/SMT
Isolation Voltage: 5000 Vrms
Maximum Fall Time: 3 ns
Maximum Rise Time: 3 ns
Moisture Sensitive: Yes
Number of Channels: 4 Channel
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 2.7 V
Propagation Delay Time: 100 ns
Operating Supply Current: 44 mA
Operating Supply Voltage: 5.5 V
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
