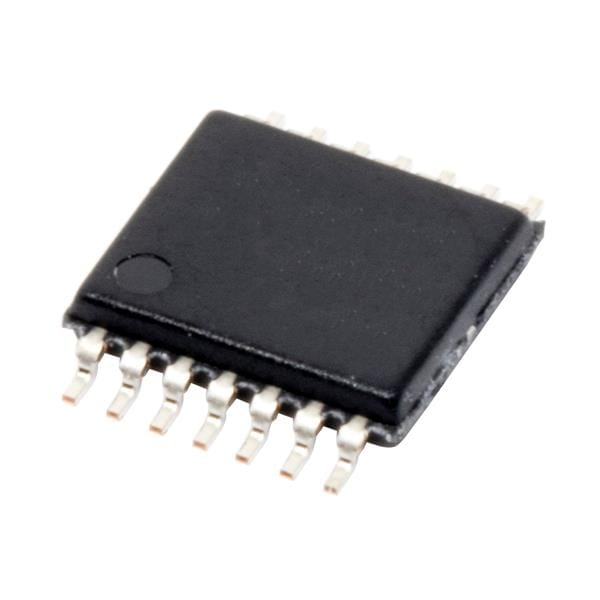

Analog Devices AD8544ARUZ-REEL General Purpose Amplifier QUAD, LOW PWR RAIL/RAIL OP AMP
ຜູ້ຜະລິດ: Analog Devices Model: AD8544ARUZ-REEL - ຕິດຕໍ່ພົວພັນ
Width: 4.4 mm
Height: 1 mm
Length: 5 mm
Shutdown: No Shutdown
Input Type: Rail-to-Rail
Output Type: Rail-to-Rail
Unit Weight: 140.300 mg
Amplifier Type: Low Power Amplifier
Mounting Style: SMD/SMT
SR - Slew Rate: 920 mV/us
Voltage Gain dB: 92.04 dB
Number of Channels: 4 Channel
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 2.7 V
Ib - Input Bias Current: 60 pA
Operating Supply Current: 260 uA
Operating Supply Voltage: 2.7 V to 5.5 V
Output Current per Channel: 30 mA
Vos - Input Offset Voltage: 1 mV
GBP - Gain Bandwidth Product: 1 MHz
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
en - Input Voltage Noise Density: 42 nV/sqrt Hz
CMRR - Common Mode Rejection Ratio: 45 dB
PSRR - Power Supply Rejection Ratio: 76 dB
