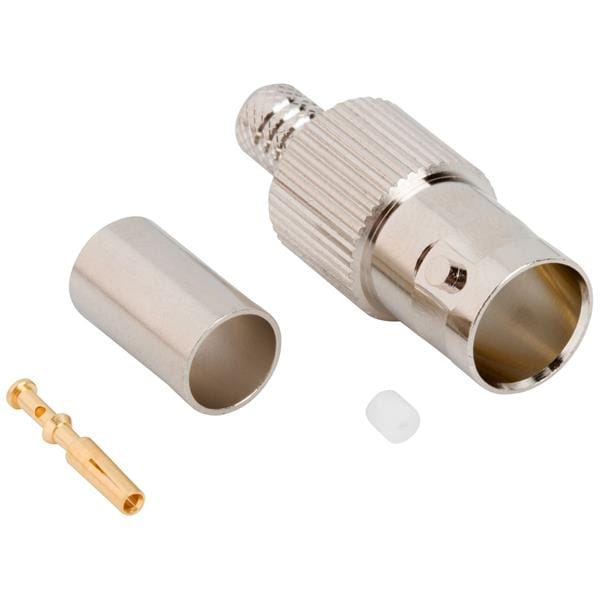

Amphenol RF 031-70573-12G Cable Connectors BNC Str Cr Jk B4505R 75 Ohm 12G Opt
ຜູ້ຜະລິດ: Amphenol RF Model: 031-70573-12G - ຕິດຕໍ່ພົວພັນ
Gender: Jack (Socket)
Polarity: Standard
Frequency: DC to 12 GHz
Impedance: 75 Ohms
Isolation: Non-Isolated
RF Series: BNC
Body Style: Straight
Cable Type: Belden 4505P
Body Finish: Nickel
Orientation: Straight
Unit Weight: 10.280 g
Body Material: Brass
Mating Cycles: 500 Cycles
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Phosphor Bronze
Maximum Frequency: 12 GHz
Minimum Frequency: DC
Termination Style: Crimp
Coupling Mechanism: Bayonet
Contact Termination: Crimp
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
