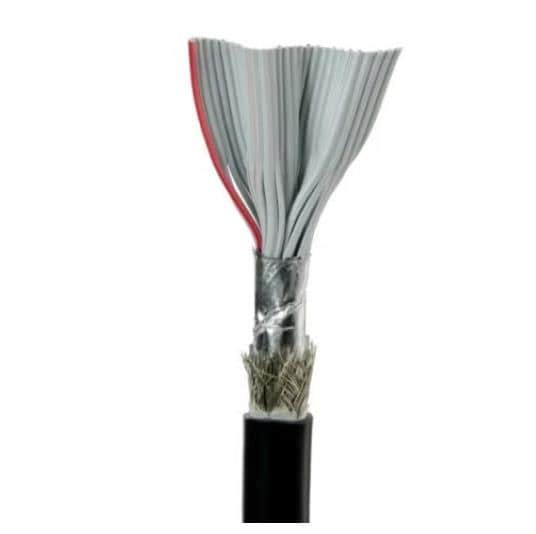

3M Electronic Solutions Division 3659/34-300SF Round Jacketed Flat Cables RND DISCRT 34C SHLD BLACK 28AWG STRANDED
ຜູ້ຜະລິດ: 3M Electronic Solutions Division Model: 3659/34-300SF - ຕິດຕໍ່ພົວພັນ
Color: Black
Pitch: 1.27 mm
Shielding: Shielded
Stranding: 7 x 36
Compliance: UL
Unit Weight: 15.876 kg
Cable Length: 91.44 m (300 ft)
Voltage Rating: 300 V
Wire Gauge - AWG: 28 AWG
Conductor Spacing: 1.27 mm (0.05 in)
Conductor Material: Copper, Tinned
Flammability Rating: UL 224 VW-1
Insulation Material: Polyvinyl Chloride (PVC)
Number of Conductors: 34 Conductor
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 20 C
