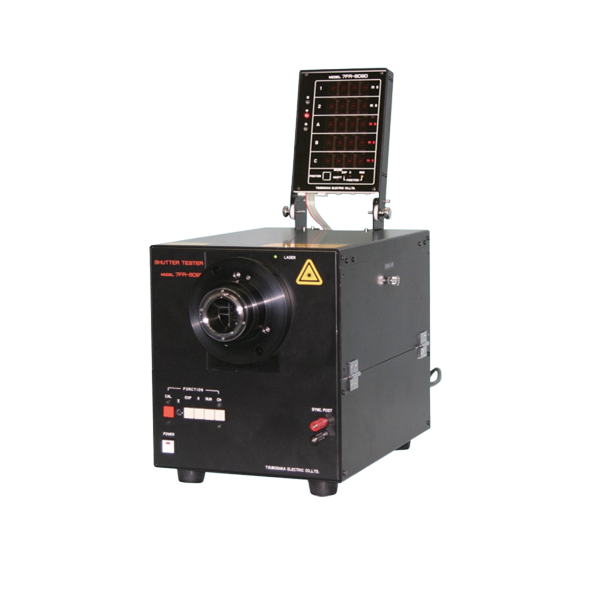

Tsubosaka 7FR-80D ເຄື່ອງທົດສອບ Shutter (0.001ms - 16.0s)
ຜູ້ຜະລິດ: Tsubosaka Model: 7FR-80D - ຕິດຕໍ່ພົວພັນ
Light source
Laser light
λ=780nm
Power:1mW ( class Ⅱ)
Function
Bound detect function
Hasty detect function
Setting range:
Crystal accuracy : within +/- 0.05 [%]
Measurement accuracy : less than +/- 5 [μs]
Object to be inspected:
Focal plane shutter
Shutter unit
Finished digital camera
Measurement range
Measurement range : 0.001ms - 16.0s
Measurement time : 0.001ms - 16.0 s
Measurement method: Reflection method
Communication I / F: RS-232C compliant
Power-supply voltage: AC100 - 120V, 200 - 240V 50/60Hz
Power consumption [VA]: 14.5
Operating environment:
Temperature : 5 - 40 [℃]
Humidity : less than 85 [%] without dew condensation
Dimensions (WxHxD) [mm]: 160×410×462
Weight [kg]: 10
ລາຍລະອຽດ
- ຮັັບປະກັນຄຸນນະພາບ
- ຮັບປະກັນຂອງແທ້
- ສົ່ງເຖິງທີ່
- ທຳທຸລະກໍາງ່າຍ
