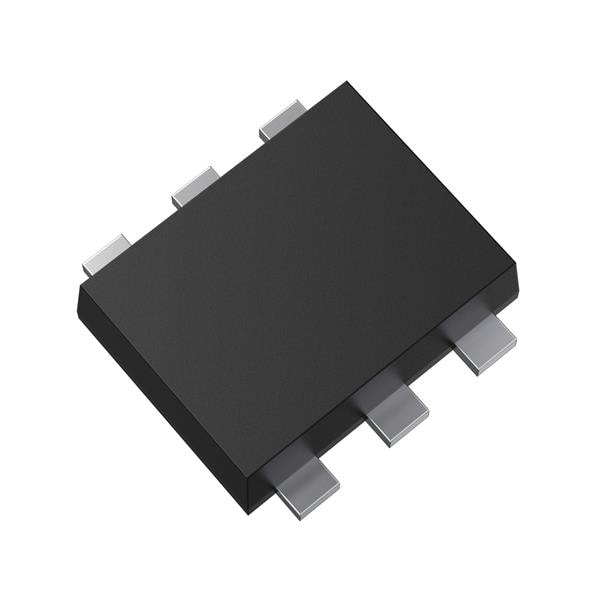

Toshiba SSM6N815R,LF MOSFETs LowON Res MOSFET ID=2A VDSS=100V
ຜູ້ຜະລິດ: Toshiba Model: SSM6N815R,LF - ຕິດຕໍ່ພົວພັນ
Technology: Si
Unit Weight: 20 mg
Channel Mode: Enhancement
Configuration: Dual
Mounting Style: SMD/SMT
Transistor Type: 2 N-Channel
Qg - Gate Charge: 3.1 nC
Number of Channels: 2 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 1.4 W
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Typical Turn-On Delay Time: 7.5 ns, 7.5 ns
Typical Turn-Off Delay Time: 21 ns, 21 ns
Id - Continuous Drain Current: 2 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Forward Transconductance - Min: 4.8 S, 4.8 S
Rds On - Drain-Source Resistance: 84 mOhms, 84 mOhms
Vds - Drain-Source Breakdown Voltage: 100 V
Vgs th - Gate-Source Threshold Voltage: 1.5 V
