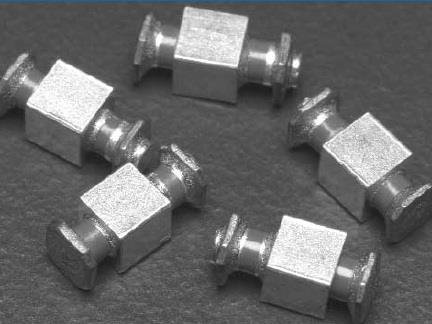

Spectrum Control PSM1F-402Z-10T0 Feed Through and Pi Low Pass Filters .120SQ.315L 4000PF 10A PI CIRCUIT
ຜູ້ຜະລິດ: Spectrum Control Model: PSM1F-402Z-10T0 - ຕິດຕໍ່ພົວພັນ
Width: 3 mm
Height: 3 mm
Length: 8 mm
Tolerance: - 20 %, + 80 %
Capacitance: 4000 pF
Unit Weight: 530 mg
Current Rating: 10 A
Capacitance - nF: 4 nF
Capacitance - uF: 0.004 uF
Termination Style: SMD/SMT
Voltage Rating DC: 200 VDC
Insulation Resistance: 1 GOhms
Maximum DC Resistance: 5 mOhms
Operating Temperature Range: - 55 C to + 125 C
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
