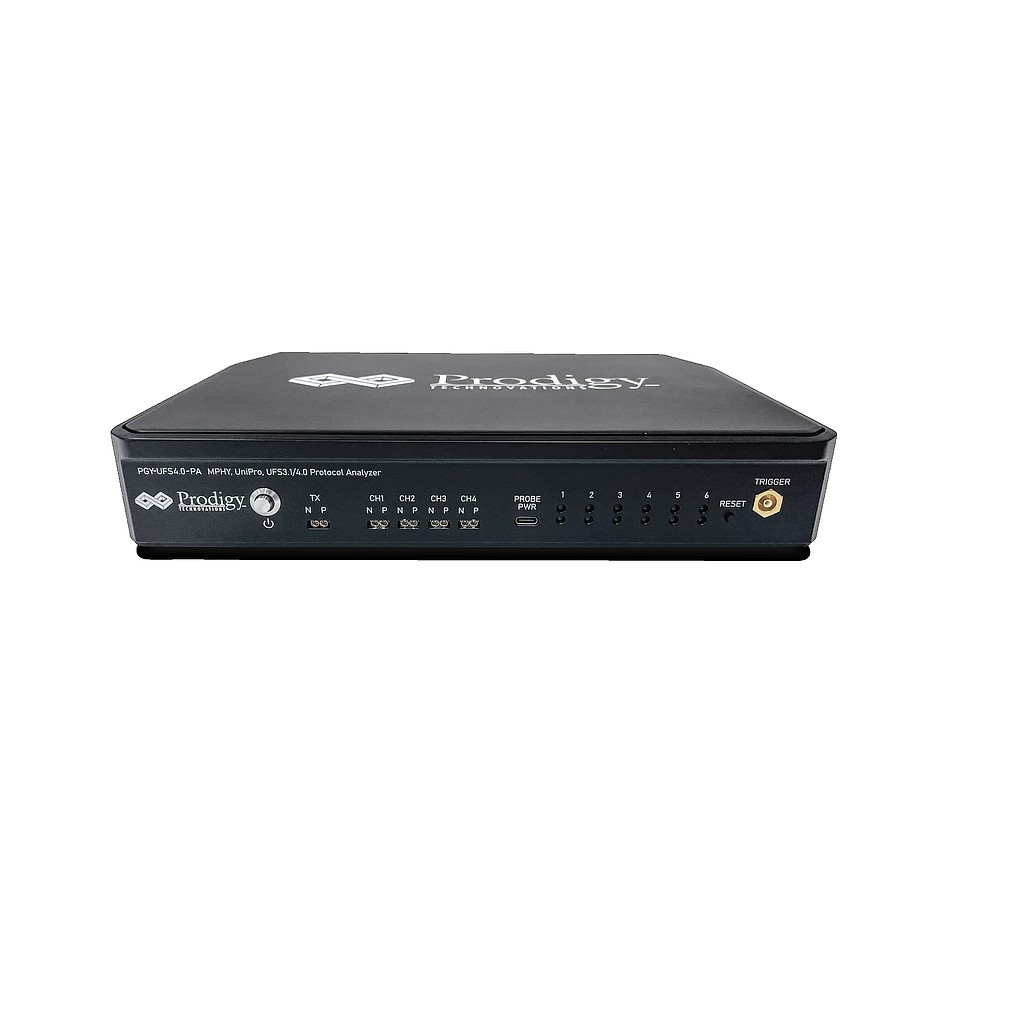

Prodigy UFS 4.0 UFS4.0 Protocol Analyzer

Data Rates Supported: PWM G1 to G7, High Speed Gear 1, Gear 2, Gear 3 and Gear 4, RateAandB, Gear 5 Rate A and B

Link width: Configurable for 1TX/1RX or 2TX/2RX

Lanes supported: Two data lanes (2 TX and 2 RX)

Probes:

+ Solder Down Active Probes (Standard)

+ CTLE Probes(Solder Down/mSMP) , Power Divider , Raised PCB Interposer

Protocol Decode: UFS, MPHY and UniPro layers

Protocol supported:

UFS v2.1/v2.2/3.1/4.0

MPHY 3.0/4.0/4.1/5.0

UniPro 1.6/1.8/2.0

Signal swing: 400mV

Trace Capture Size: Supports Continuous streaming of Protocol data to Host computerSSD/HDD. Internal acquisition memory of 16GB expandable upto64GB

Trigger: Based MPHY, UniPro, UFS Packets

Front Panel Connectors: Interface for Active probes. Trigger in/out SMA connectors

Interface for Host Computer: USB3.0 and Gigabit Ethernet interface

Host Computer Requirements: Windows 7/8.0/8.1/10 64bit operating System. It supports aRAMofminimum 8GB, but the product would give a faster response for a32GB. The minimum storage capacity of 100GB should be available intheharddisk drive. User can use more storage based on trace storage requirement. Display resolution of the monitor is 1024X768. Host computer shouldsupport USB3.0 or GBe interface.

Temperature:

+ Operating: +0 °C to +50 °C (32 °F to 122 °F)

+ Non - Operating:  -20 °C to +60 °C (-4 °F to 140 °F)

Dimension (W x H x D): (20.5X5X25) cms

Weight: Approx. 2.5Kg

Power Requirement: 12V, 3A DC Power Supply (AC/DC Supplied along with Analyzer)

ESD: Regulatory CE marked and RoHS compliant
