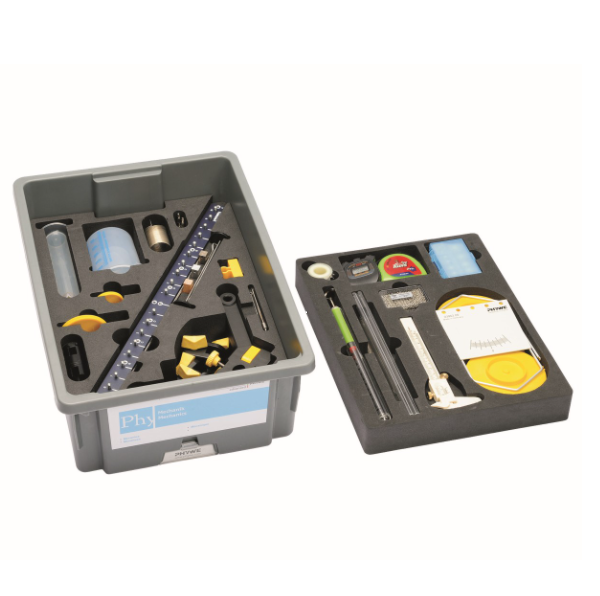

PHYWE 25271-88 TESS Advanced Physics Set Mechanics 1 (Grade 5-10)

- Function and Applications:

+ Basic set allowing the performance of 32 experiments about the following topics:

• Physical quantities and characteristics (5 experiments)

• Forces (10 experiments)

• Elementary machines (9 experiments)

• Liquids and gases (2 experiments)

• Oscillations (6 experiments)

- Benefits:

• Complete equipment set: simple execution of the experiments

• The equipment is stored in a rugged, stackable and compact box, allowing quick control of completeness (foam insert)

• Experimenting literature for pupils and teachers available: minimal preparation time

• Matched with international Curriculum: all topics are covered

• Easy teaching and efficient learning by using the interactive experimentation Software interTESS

- Equipment and Technical Data:

• The equipment set consists of all necessary components for the experiments

• Robust, stackable storage box with a foam insert fitting to the contained equipment

- Scope of delivery:

Support base, variable (1): 02001-00

Support rod, stainless steel, different lenghts | Length(1): 250 mm: 02031-00

Support rod with hole, stainless steel, 10 cm(2): 02036-01

Boss head(2): 02043-00

Fishing line, l. 20m(1): 02089-00

Weight holder, 10 g(2): 02204-00

Slotted weight, black, 10 g(4): 02205-01

Slotted weight, black, 50 g(3): 02206-01

Helical spring, 20 N/m(1): 02222-00

Pulley,movable,dia.65mm,w.hook(1): 02262-00

Rod for pulley(1): 02263-00

Spring balance,transparent, 1 N(1): 03065-02

Spring balance,transparent, 2 N(1): 03065-03

Spring balance holder(2): 03065-20

Aluminium column(1): 03903-00

Steel Column nickel-plated(1): 03913-00

Holding pin(1): 03949-00

Balance pan, plastic(2): 03951-00

Lever(1): 03960-00

Pointer for lever(1): 03961-00

Plate with scale(1): 03962-00

Pulley,movable,dia.40mm,w.hook(1): 03970-00

Steel pellets, d = 2 mm, 120 g(1): 03990-00

Wood column(1): 05938-00

Glass tube holder with tape measure clamp(1): 05961-00

Measuring tape, l = 2 m(1): 09936-00

Pulleys, double in line(2): 02266-00

Beaker, 100 ml, plastic (PP)(1): 36011-01

Beaker, 250 ml, plastic (PP)(1): 36013-01

Graduated cylinder, 50 ml, plastic(1): 36628-01

Pipette with rubber bulb(1): 64701-00

Vernier calliper, plastic(1): 03011-00

Digital stopwatch, 24 h, 1/100 s and 1 s(1): 24025-00

Lid for TESS box, plastic(1): 15205-00

TESS box, plastics, high, 305 x 425 x 150 mm(1): 15200-00

Foam insert for 15271-88(1): 171573

Sticker for 15271-88(1): 171642

Storage information for 15271-88(1): 171649

Support rod 300 mm with thread M6(3): 331590

- Necessary Accessories:

TESS advanced Mechanics 1 consumables for 10 groups (13450-88)

- Optional Accessories:

TESS advanced Physics manual Mechanics 1 to 5 (01158-02)

TESS advanced Physics supplementary set  Mechanics 2 (15272-88)

TESS advanced Physics Set Linear Motion with Timer 2-1 (Dynamics) (15283-88)
