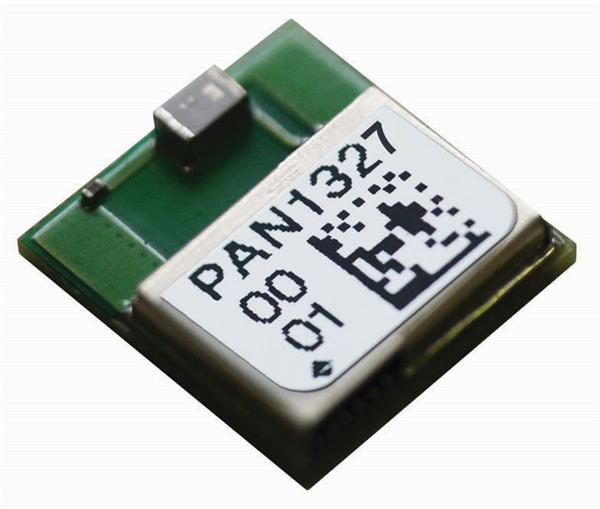

PANASONIC ENW-89827A2KF Bluetooth Modules PAN1327 CC2567 HCI BT+ANT Antenna +85
ຜູ້ຜະລິດ: PANASONIC Model: ENW-89827A2KF - ຕິດຕໍ່ພົວພັນ
Class: Class 1, Class 2
Width: 9 mm
Height: 1.8 mm
Length: 9.5 mm
Antenna: Integrated
Protocol: BLE, Bluetooth 4.0 + EDR
Data Rate: 2.178 Mb/s
Frequency: 2.4 GHz
Sensitivity: - 93 dBm
Output Power: 10 dBm
Interface Type: I2C, PCM, UART
Mounting Style: SMD/SMT
Moisture Sensitive: Yes
Protocol - Sub GHz: ISM
Receiver Sensitivity: - 93 dBm
Supply Voltage - Max: 4.8 V
Supply Voltage - Min: 1.7 V
Antenna Connector Type: Integrated
Operating Supply Voltage: 1.7 V to 4.8 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
