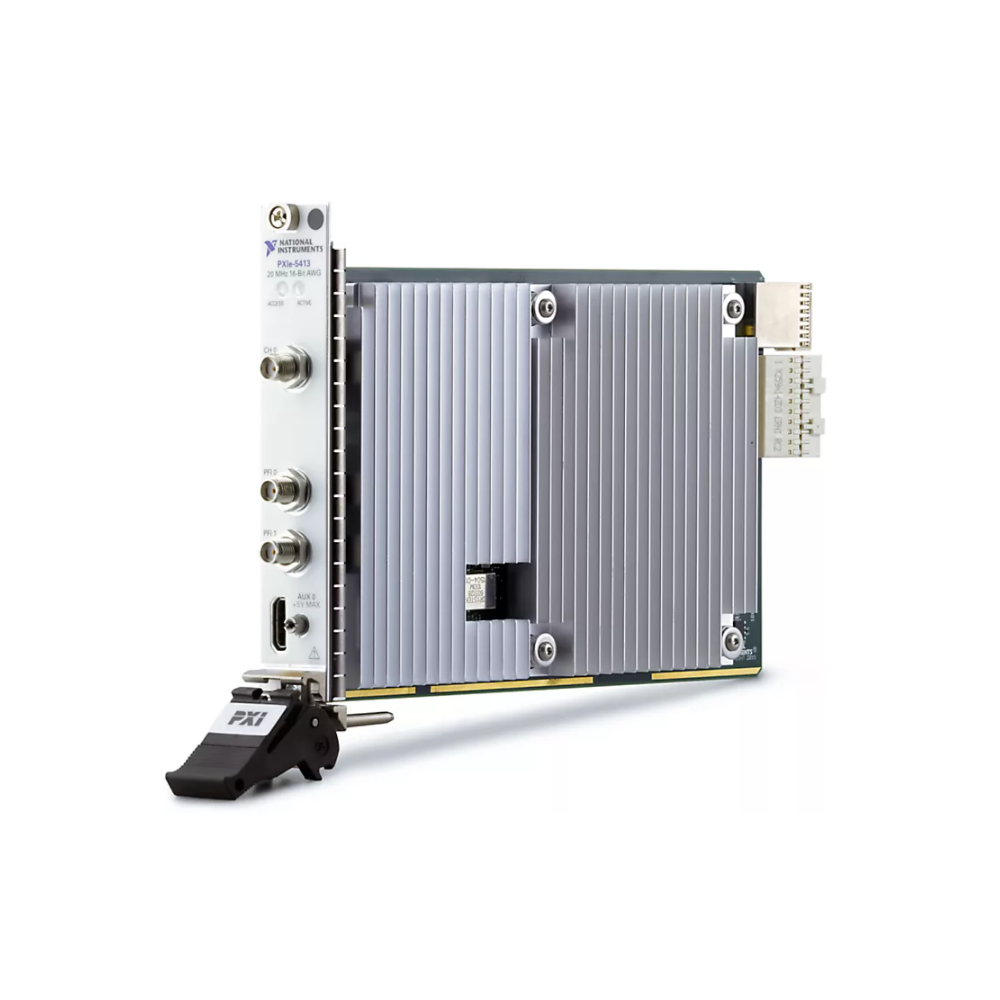

NI PXIe-5413 PXI Waveform Generator (1-Channel, ±12V, 128 MB, 20 MHz)
ຜູ້ຜະລິດ: NI Model: PXIe-5413 P/N: 784181-01 - ຕິດຕໍ່ພົວພັນ
Supports Scripting: No
Bus Connector: PXIe
Maximum Bandwidth: 20 MHz
Maximum Update Rate: 800 MS/s
Analog Output Resolution: 16 bits
Analog Output Voltage Range: -12 V to 12 V
Analog Output Onboard Memory Size: 128 MB
Number of Output Channels: 1
Supports Arbitrary Waveforms: Yes
RF Signal Generation: No
Supports Digital Upconversion: No
Generates standard functions and user-defined, arbitrary waveforms as part of a PXI system.
PXI Waveform Generators can produce precise waveforms including sine, square, triangle, and ramp as well as arbitrary, user-defined waveforms using sequences of data or streaming continuously from a host or peer-to-peer instrument within the PXI system. These instruments are ideal for tightly synchronized, mixed-signal test systems in scientific research or test of semiconductor devices, consumer electronics, automotive, and aerospace/defense.
Datasheet
