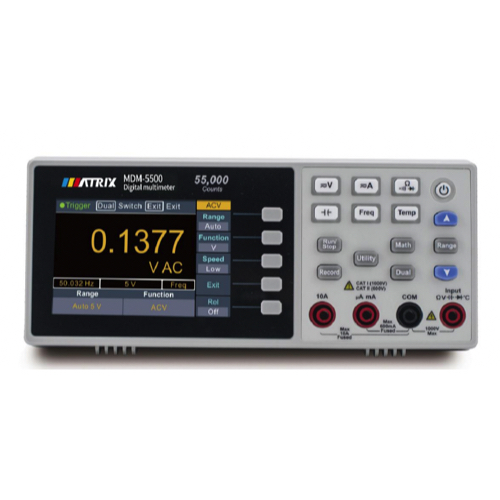

MATRIX MDM-5500 Digital Multimeter (50.000mVDC-1000.0VDC, 500mVAC - 750VAC, True RMS)

DC Voltage:

Measurement Range/ Resolution/ Accuracy ±(% of reading + % of range)

50.000mV / 0.001mV / 0.1% + 10

500.00mV / 0.01mV / 0.05% + 5

5.0000V / 0.0001V / 0.05% + 5

50.000V / 0.001V / 0.05% + 5

500.00V / 0.01V / 0.1% + 5

1000.0V / 0.1V / 0.1% + 10

AC Voltage:

Measurement Range: 500mV - 750V

Resolution/ Accuracy ±(% of reading + % of range)

20Hz-45Hz/ 1% + 30

45Hz-65Hz/ 0.5% + 30

65Hz-1KHz/ 0.7% + 30

DC Current:

Measurement Range/ Resolution/ Accuracy ±(% of reading + % of range)

500uA / 0.01uA / 0.15% + 20

5000uA / 0.1uA / 0.15% + 10

50mA / 0.001mA / 0.15% + 20

500mA / 0.01mA / 0.15% + 10

5A / 0.0001A / 0.5% + 10

10A / 0.001A / 0.5% + 10

AC Current:

Measurement Range: 500µA - 500mA / Accuracy: 0.5% + 20

Measurement Range: 5A - 10A / Accuracy: 1.5% + 20

Resistance:

Measurement Range/ Resolution/ Accuracy ±(% of reading + % of range)

500Ω / 0.01Ω / 0.15% + 10

5KΩ / 0.0001KΩ / 0.15% + 5

50KΩ / 0.001KΩ / 0.15% + 5

500KΩ / 0.01KΩ / 0.15% + 5

5ΜΩ/ 0.0001ΜΩ /0.3%+5

50ΜΩ/ 0.001ΜΩ/ 1%+10

Frequency: 10.000Hz-60MHz, accuracy: ±(0.2%+10)

Capacitance:

Measurement Range/ Accuracy ±(% of reading + % of range)

50nF-500uF/ 2.5%+5

5mF-50mF/ 5%+10

Diode: 3.0000 V, Resolution: 0.0001V

Continuity:

Measurement Range/ Resolution/ Accuracy ±(% of reading + % of range)
1000 Ω/ 0.1Ω/ Adjustable threshold

Temperature: K type, PT100

Max Display: 55,000 counts

Logging Duration: 15ms-9999.999s

Logging Length: 1,000 points

Display Screen: 3.7-inch TFT LCD with resolution 480*320.

Dimensions (WxHxD): 235 x 88x 64 (mm)

Device Weight: Approximately 0.45kg.
