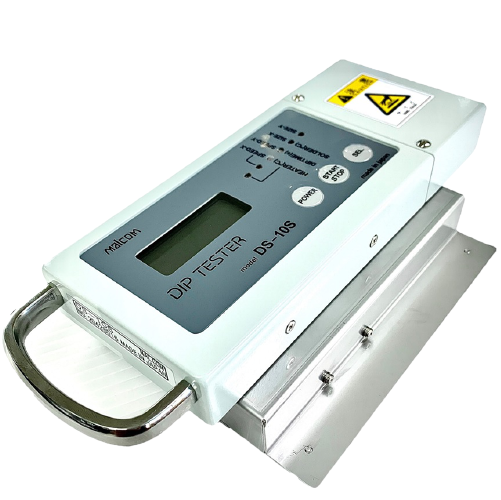

Malcom DS-10S Dip Tester ສໍາລັບເຄື່ອງ Solder ເລືອກ (0~330℃)
ຜູ້ຜະລິດ: Malcom Model: DS-10S ທີ່ມາ: Japan ຮັບປະກັນ: 12 Tháng - ຕິດຕໍ່ພົວພັນ
Ambient temp: 150℃ 5minutes max
External connection: USB (miniB connector)
Number of memory: 1 (Max5 solder stage)
Sampling time: 50ms (fix)
Outer dimensions*weight: 78mm(D)X214mm(W)×43.6mm(H)*820g
Power supply: AAA batteries x2pcs
ລາຍລະອຽດ
Items | Sensor | Display | Measurement range | Accuracy |
Solder temp. | K-type shath thermocouple | Degital LCD 3digit | 0～330℃ | ±1℃※ |
PCB lower sarfce temp. | k-type thermo couple | 0～330℃ | ±1℃※ | |
Dip time | Electrode(2pcs.) | 0～10sec. | ||
X,Y axis moving speed | Electrode(8pcs.) | 0～20mm/sec. | ||
X,Y axis solder size | Electrode(8pcs.) Calucurate from the moving speed & contact time to the electrodes | 0～35mm | ±0.2秒 | |
Temp.profile | Preheat・Solder temp. | PC software | 0～330℃ | ±1℃※ |
