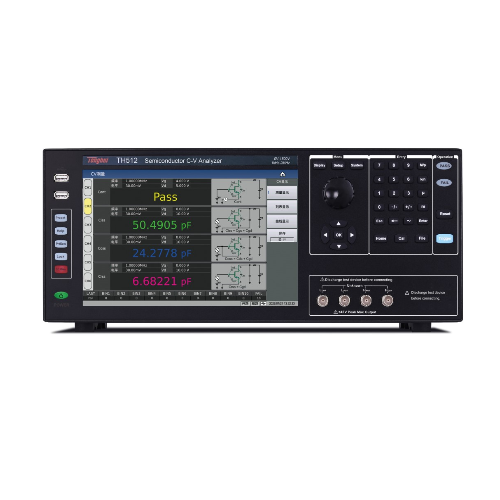

Tonghui TH512 반도체 C-V 특성 분석기 (0 - 1500V)

Channel: 2 (4/6 Ch Optional)

Display

+ Display: 10.1-inch capacitive touchscreen

+ Ratio: 0.672916667

+ Resolution: 1280*RGB*800

Test Parameter: Ciss, Coss, Crss, Rg. Four parameter selectable arbitrarily

Test Frequency

+ Range: 1kHz-2MHz

+ Accuracy: 0.0001

+ Resolution: 10mHz 1.00000kHz-9.99999kHz

                      100mHz 10.0000kHz-99.9999kHz

                      1Hz 100.000kHz-999.999kHz

                      10Hz 1.00000MHz-2.00000MHz

Test Level:

+ Voltage Range: 5mVrms-2Vrms

+ Accuracy: ± (10%*Setting Value+2mV)

+ Resolution: 1mVrms: 5mVrms-1Vrms

                      10mVrms: 1Vrms-2Vrms

Vgs

+ Range: 0 - ±40V

+ Accuracy: 1%* Setting Voltage+8mV

+ Resolution: 1mV: 0V - ±10V

                      10mV: ±10V - ±40V

Vds

+ Range: 0 - 1500V

+ Accuracy: 1%* Setting Voltage+100mV

Boot Warm-up Time: 60 Minutes

Input voltage: 100-120VAC/198-242VAC Option, 47-63Hz

Power consumption: More than 130VA

Dimensions (W*H*D): 430*177*405

Weight: 12kg
