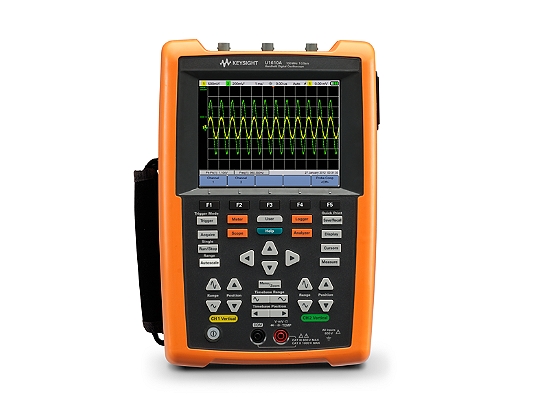

KEYSIGHT U1610A Handheld Digital Oscilloscope (100Mhz, 2channels, 1GSa/s)
ຜູ້ຜະລິດ: KEYSIGHT Model: U1610A - ຕິດຕໍ່ພົວພັນ
Oscilloscopes:
Displays: 5.7” color VGA TFT LCD
Channels: 2
Bandwidth: DC to 100 MHz
Maximum sampling: 1 GSa/s 1 chanel, 500 MSa/s each channel if using 2 chanel
Digital mutimeter DMM:
True RMS: AC+DC
Voltage AC/DC: 1000 V
Resistance: 100 MΩ
Capacitance: 1000.0 nF to 10.000mF
Temperature: 1000 °C, K-type thermocouple (option)
Diode test: yes
Data logging Internal: 250 points
Battery (included): Li-Ion rechargeable battery pack, 10.8 V / 3h
Include: Quick start guide, power adapter, Li-Ion battery pack, USB cable, test lead, 10:1 probe (2 sets), Certificate of Calibration (CoC).
Dimensions (H x W x D): 183x270x65mm
Option
U1560A: Scope probe x1 CAT III 300 V
U1562A: Scope probe x100 CAT III 600 V
U1572A: Li Polymer battery pack
U1573A: Desktop charger & Li Polymer battery pack
U1575A: Desktop charger
U1591A: Soft carrying case
