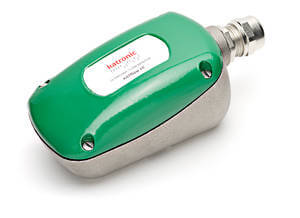

Katronic KATflow 10 Clamp-on ຕິດຕາມການໄຫຼ ultrasonic (30 mm ~ >350 mm, 0.3 ~ 4m/s)
ຜູ້ຜະລິດ: Katronic Model: KATflow 10 - ຕິດຕໍ່ພົວພັນ
SPECIFICATION
Pipe diameter range: 30 mm to over 350 mm
Temperature range: -20 °C to +70 °C (-4 °F to +158 °F)
Weight: 1.5 kg
Robust IP 68 stainless steel housing
Velocity range: 0.3 … 4 m/s
Power supply: 18 … 28 VDC
PERFORMANCE
Measurement principle: RSSA - Refracted Spread Spectrum Analysis
Flow velocity range: 0.3 ... 4 m/s
Accuracy: ±5 % (up to 350 mm pipe diameter)
Pipe diameter range: 30 mm ... 350 mm
Pipe wall thickness: < 20 mm
Pipe material: Rigid plastic, stainless steel, mild steel, cast iron, corrugated pipes
Gaseous and solid content of liquid media:
Minimum particle size of 100µ
Minimum particle concentration of 200 ppm
ລາຍລະອຽດ
- ຮັັບປະກັນຄຸນນະພາບ
- ຮັບປະກັນຂອງແທ້
- ສົ່ງເຖິງທີ່
- ທຳທຸລະກໍາງ່າຍ
