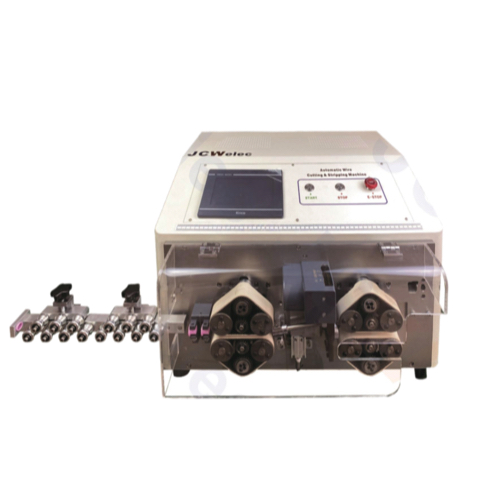

JCW JCW-CS13 Belt Feed ອັດຕະໂນມັດ 8mm Multicore Cable Cut and Strip Machine (2-8 mm, 0.1-999999 mm)
ຜູ້ຜະລິດ: JCW Model: JCW-CS13 - ຕິດຕໍ່ພົວພັນ
Function: Single wire, Round multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Wire lack sensor, Length correction, Thermal transfer printer, Program names
Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable size: 2-8 mm O.D.
Cutting length (L): 0.1-999999 mm
Cutting length accuracy: 0.002 x L
Outer jacket stripping length:
Leading (right) side: 250 mm
Trailing (left) side: 60 mm
Inner core stripping length: 30 mm at dual-ends
Production rate: 1500 pcs/h by 100mm wire length [multi-layer stripping]
Compatible peripherals: Cable dereeler, robot arm, conveyor belt
Power supply: AC 110V-220V±10%, 50/60 Hz
Air supply: 0.4-0.7 MPa (clean and dry air)
Dimensions: L 650 x W 560 x H 450 mm
Weight: 75KG
