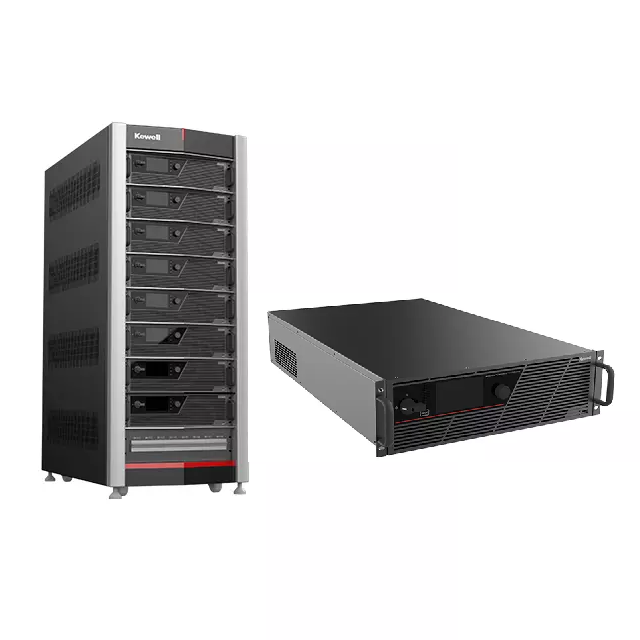

Kewell S7000H-15K-1500-0040 回生DC電源負荷電力システム (1500V; 40A; 15kW)
生産者: Kewell Model: S7000H-15K-1500-0040 品物を保証します: 12 Month - 連絡先
Rated values
- Voltage: 1500V
- Current: 40A (up to 70A)
- Power: 15kW
Display resolution
- Voltage: 0.1V
- Current: 0.01A
- Power: 1W
Precision
- Voltage: ≤0.05%FS
- Current: ≤0.1%FS
Line regulation
- Voltage: ≤0.02%FS
- Current: ≤0.02%FS
Load regulation
- Voltage: ≤0.05%FS
- Current: ≤0.05%FS
Ripple
- Vpp: <3000mV
- Voltage (rms): <400mV
- Current (rms): <35mA
Slew rate
- Voltage (no load): 0.001V/ms~200V/ms
(full load): 0.001V/ms~90V/ms
- Current (no load): 0.001A/ms~20A/ms
(full load): 0.001A/ms~10A/ms
- Dynamic response time: <1ms (10-90% load)
AC Input
- Voltage: 342VAC~528VAC
- Frequency: 47Hz~63Hz
Power Factor: >0.99
Protection: OVP/OCP/OPP/OTP/Anti-islanding protection
Communication interface: RS485/LAN/CAN/USB/Others (customize)
Dimensions: 733mm (D) × 445mm (W) × 132.5mm (H)
Weight: <45kg
