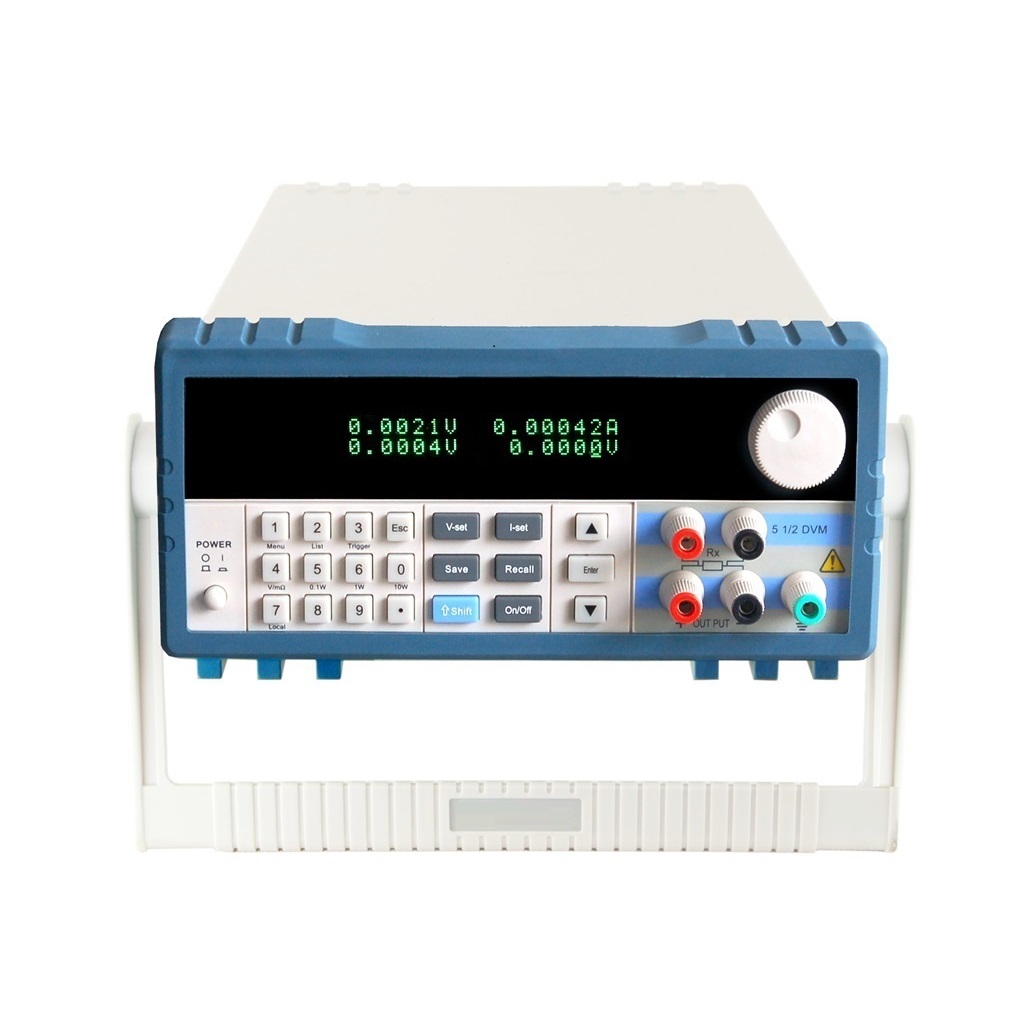

Hopetech HT6831 ການສະຫນອງພະລັງງານ DC ທີ່ສາມາດວາງແຜນໄດ້ (0-30V, 0-1A)
ຜູ້ຜະລິດ: Hopetech Model: HT6831 ຮັບປະກັນ: 12 Tháng - ຕິດຕໍ່ພົວພັນ
Output Rating:
Voltage: 0-30V
Current: 0-1A
Load Regulation:
Voltage: <0.01%+0.5mV
Current: <0.01%+0.1mA
Setting Value Resolution:
Voltage: 0.5mV
Current: 0.01mA
Readback Value Resolution:
Voltage: 0.1mV
Current: 0.001mA
Setting Value Accuracy:
Voltage: 0.01%+2mV
Current: 0.05%+0.1mA
Readback Value Accuracy:
Voltage: 0.02%+5mV
Current: 0.02%+1mA
Ripple:
Voltage: 10mvp-p
Current: 0.5mA rms
Volmeter Accuracy:
0-12V Accuracy: 0.02%+2mV
0-58V Accuracy: 0.02%+5mV
Milli ohmmeter accuracy:
10W. 0-1000mΩ Accuracy: 0.2%+3mΩ
1000-10000mΩ Accuracy: 0.2%+6mΩ
Working Condition: 0-40°C; 0-90%RH
Power Required: AC 120V/220V±10%; 50/60HZ
Weight: 6.5Kg
Dimension: 214mm W x 101.5mm H x 365mm D
