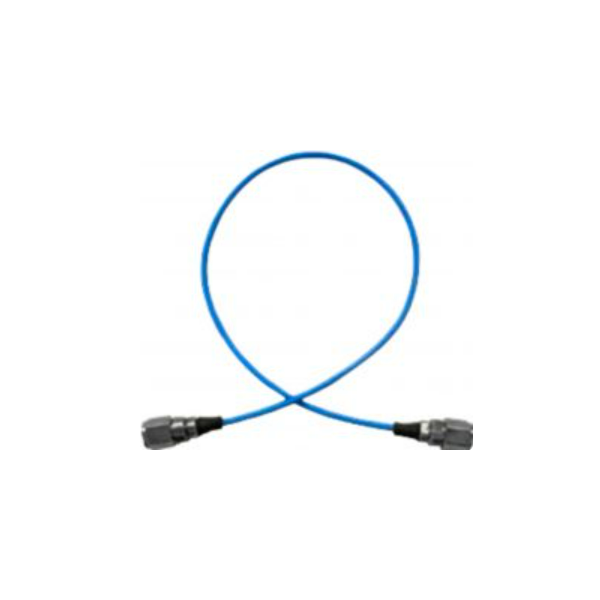

Honestco SXL-22,22F,22FP ສາຍເຄເບີນທີ່ມີຄວາມຍືດຫຍຸ່ນ MicroWave
ຜູ້ຜະລິດ: Honestco Model: SXL-22,22F,22FP - ຕິດຕໍ່ພົວພັນ
Impedance: 50±1.0 (Ω)
Outer conductor diameter: 2.1±0.1mm
Innner conductor diameter: 0.511+0.010/0.511-0.005 mm
Insulator diameter: 1.58+0.04mm/1.58-0.06mm
Capacictance: 98 pF/m
Insulation dielectric strength (VRMS): 3000
Corona generating voltage (VRMS): 1500
Higher order mode: 64 GHz
Wavelength shortening: 70%
The minium bending radius: 5.0mm
Weight: 17.0 g/m
Attenuation/Electric Power Capacity (Db/M) (W) (20°C, sea level):
1.0GHz: 0.79
5.0GHz: 1.72
10.0GHz: 2.60
18.0GHz: 3.70
ລາຍລະອຽດ
