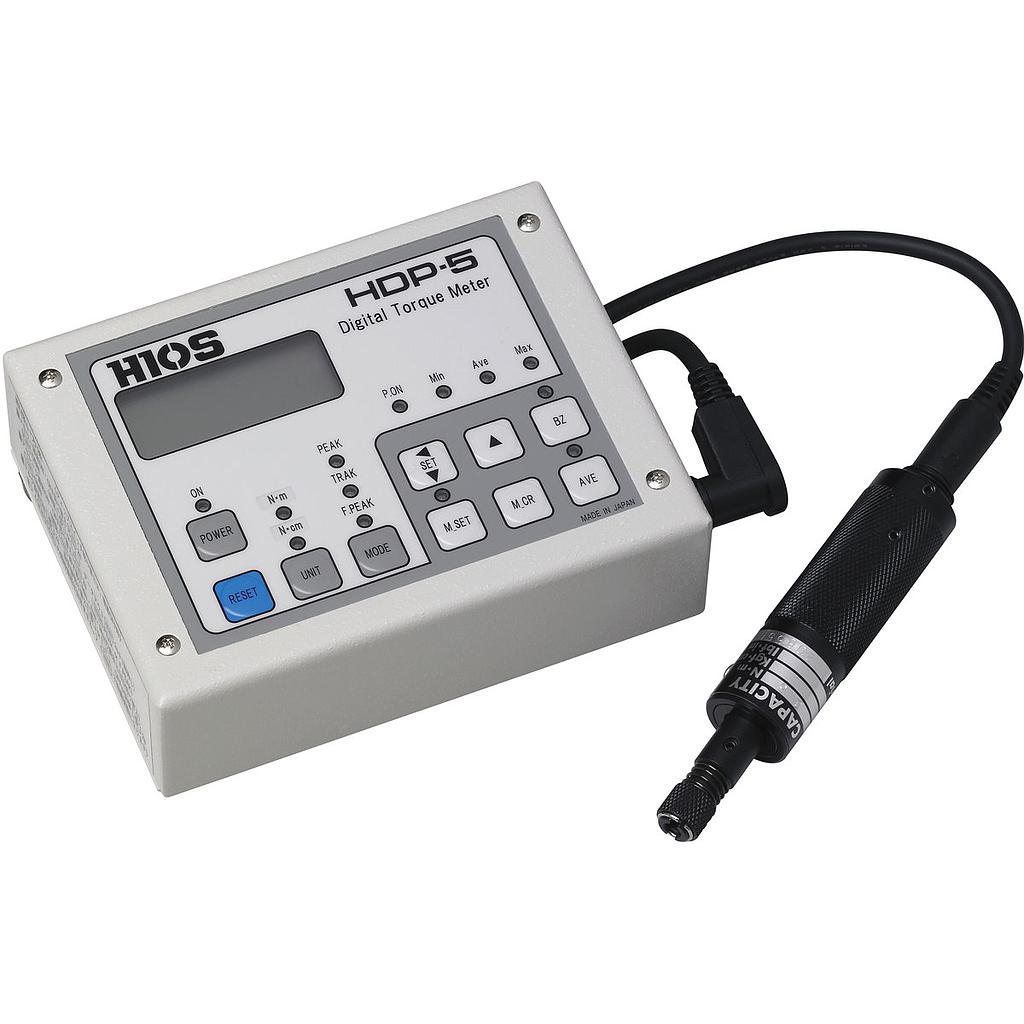

HIOS HDP-5 Torque Meter
ຜູ້ຜະລິດ: HIOS Model: HDP-5 ຮັບປະກັນ: 12 Tháng - ຕິດຕໍ່ພົວພັນ
Peak mesuring range: (N・m) 0.015-0.5
(lbf・in) 0.15-50
Accuracy: Within ±0.5% (F.S.)
Measuring models: TRACK, PEAK, FIRST PEAK
External Dimensions(mm):
+ Display unit: 125 ×95.6 ×42 (H)
+ Detector: 104(L)×∅21
Weight(g):
+ Torque display: 0.78 kg
+ Detector: 0.068kg
Detector: Bit socket H4 or 1/4HEX
Detectorcord: 1.7m (P/N: DPC-0506)
Charging time: 1.2V NiMH x 5 cells 1,000mA (within 6 hours)
Continuous operating time ona full charge: 8 hours
Battery life: About 300 charges
Exclusive battery charger: Input：AC 100-240V （50 / 60Hz）
Output：DC 7.3-8V 0.5 A
Manual
Feature
Use for measuring loosened torque of tightened screws or additional tightening torque.
● Measured data can be imported to a computer.
● Up to 100 data items can be stored in the memory and controlled (applicable to HP and HDP only).
● With one unit of Torque Meter, max, min and ave torque values can be measured (applicable to HP and HDP only).
● New product, HP-1 is ideal for measuring 10N･cm or smaller torque.
● Torque for both clockwise or counterclockwise can be measured.
● As a standard specificataon, data output and analogue output are available.
● We offer calibration and maintenance services.
● “Inspection Report” is attached to all the Torque Meters.
