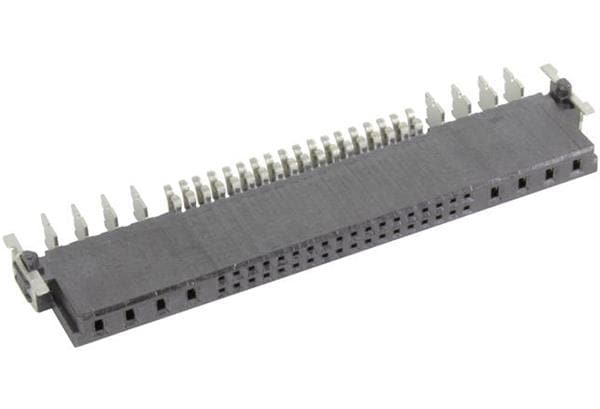

HARTING 15858362601000 Connectors har-flex hybrid angled female, 8p+36s pins, SMT, PL1
ຜູ້ຜະລິດ: HARTING Model: 15858362601000 - ຕິດຕໍ່ພົວພັນ
Pitch: 1.27 mm, 2.54 mm
Contact Gender: Socket (Female)
Current Rating: 22.5 A
Mounting Angle: Right Angle
Mounting Style: SMD/SMT
Voltage Rating: 50 VAC, 120 VDC
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Number of Positions: 8 Power, 36 Signal
Insulation Resistance: 100 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
