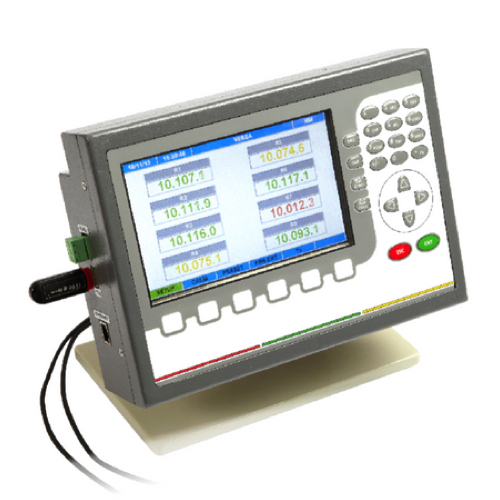

Octagon Octa-Gage Multi Channel Electronic Gauging Displays (2/4/6/8 LVDT Channels)
Manufacturer: Octagon Model: Octa-Gage - Contact
Input Channels: 2/4/6/8 LVDT Channels
Type: Standard/Fanuc Interface (OctaGage Transmit data to Fanuc controller 0-1 / Power Mate/16/18 Series)
Resolution: 0.1 μm / 0.2 µm / 0.5 µm / 1µm / 2µm / 5µm / 10µm
Units: mm
Setup: 100
Measurement Modes: Current, Min, Max, TIR, AVG
Result Formula Editor: Result formula can be edited for combinations of LVDT channels and/or other results
Indications: Pass, Fail, Warning
Calibration: Single / Double Master configurable
Scaling: Auto / Manual
User Interface: USB 2.0 Compliant (for mass storage device)
PC Interface: RS-232, RS-485, Ethernet (For Firmware Upgrades Only)
Digital Input/Outputs: 8 Inputs + 8 Outputs, Isolated, Open collector
Digital Views: Digital Readout / Dial / Bar graph / Run Chart
Memory: Inbuilt micro SD card of 4 GB for data storage
Footswitch Interface: Available
