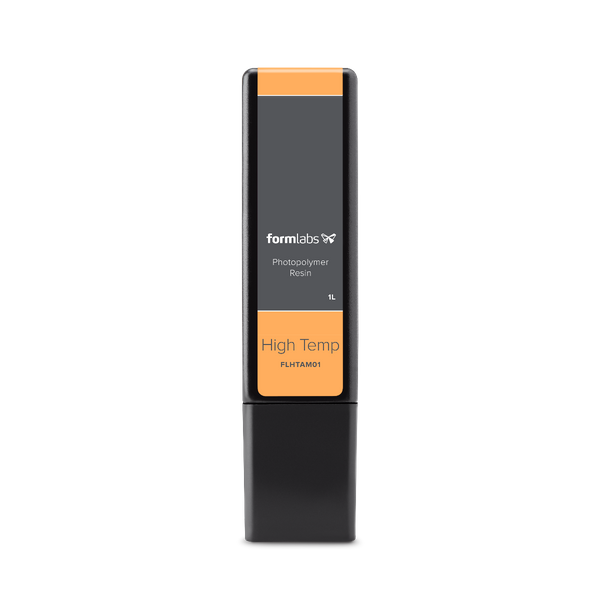

FORMLABS RS-F2-HTAM-02 High Temp Resin Cartridge (Form 2 - 3)
Manufacturer: FORMLABS Model: RS-F2-HTAM-02 Origin: Korea - Contact
Whether you’re optimizing your manufacturing process, rapidly iterating through designs, or assessing form, fit, and function, Formlabs Engineering Resins are formulated to withstand extensive testing and perform under stress.
High Temp Resin has a heat deflection temperature (HDT) of 238 °C @ 0.45 MPa—the highest among Formlabs resins. Use it to print detailed, precise prototypes with high thermal stability.
Separate Resin Tank required for High Temp Resin V1 and V2.
Supports print resolutions: 100, 50, and 25 microns.
Post-curing required.
Ultimate Tensile Strength: 58.3 MPa
Flexural Modulus: 2.62 GPa
Tensile Modulus: 2.75 GPa
Elongation: 3.3 %
Notched IZOD: 18.2 J/m
Heat Deflection Temp. @ 1.8 MPa: 99.2 °C
Heat Deflection Temp. @ 0.45 MPa: 142 °C
Thermal Expansion (23 – 50 °C): 79.6 (μm/m/°C)
