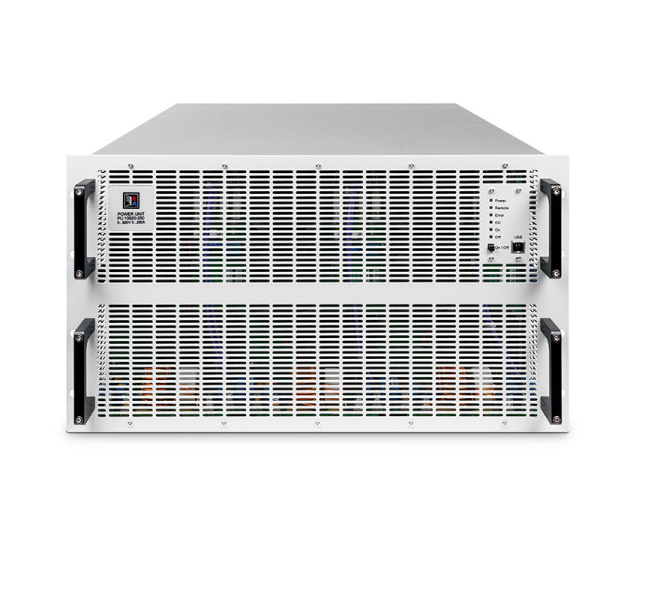

EA Elektro-Automatik PUB 12000-80 Programmable Bidirectional DC Power Supply (2000V; 80A; 60000W)
ຜູ້ຜະລິດ: EA Elektro-Automatik Model: PUB 12000-80 P/N: 1123017 - ຕິດຕໍ່ພົວພັນ
DC output:
Voltage range : 0 - 2000 V
Ripple in CV (rms) : ≤500 mV (BWL 300 kHz)
Ripple in CV (pp) : ≤3000 mV (BWL 20 MHz)
U Min for IMax (sink) : 3.7 V
Current range : 0 - 80 A
Power range : 0 - 60000 W
Resistance range : 0.85 Ω - 1350 Ω
Output capacitance : 85 μF
Effi ciency sink/source (up to) : 96.5% *1
Insulation:
Negative DC pole <-> PE : ±1500 V DC
Positive DC pole <-> PE : +2000 V DC
*1 At 100% power and 100% output voltage; BWLL = band width limit
