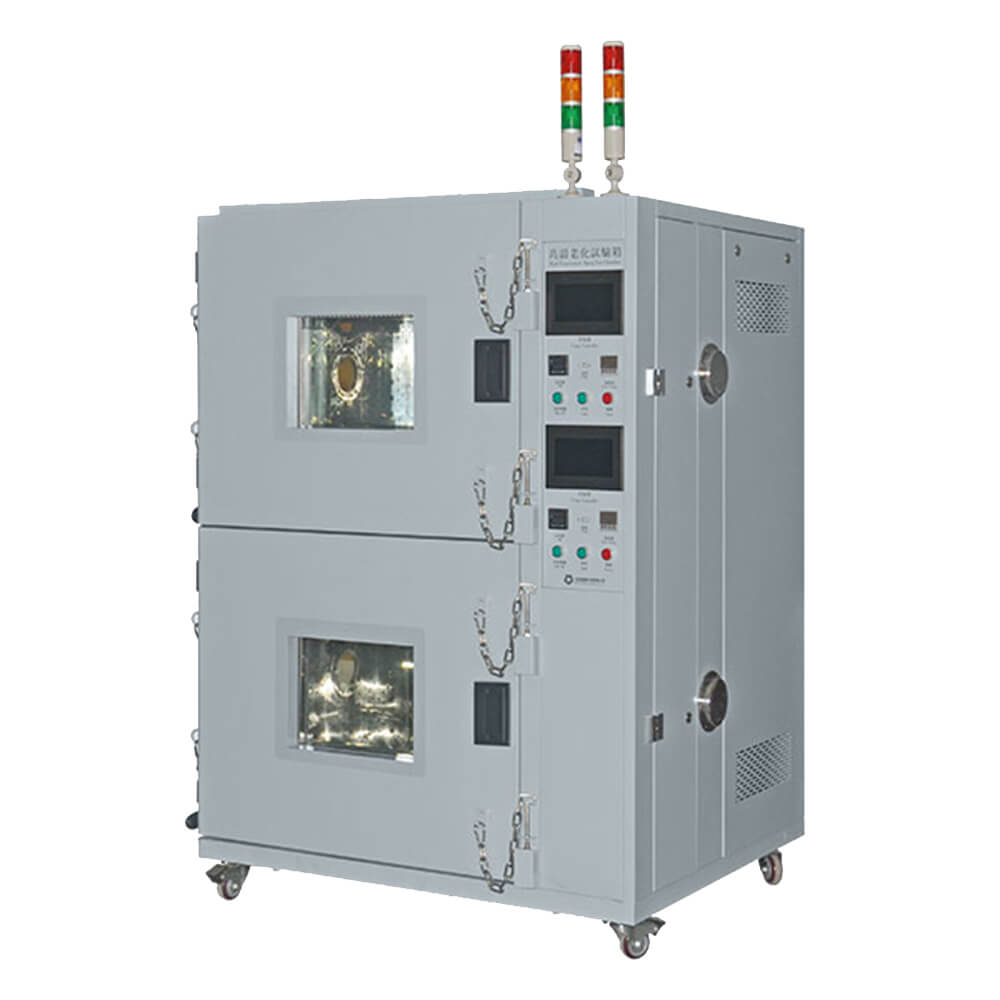

DGBell BTT-D2-216A Double-deck Burn-in Chamber (Temperature Aging Test) (10 ℃~150 ℃)
ຜູ້ຜະລິດ: DGBell Model: BTT-D2-216A - ຕິດຕໍ່ພົວພັນ
Single Cabinet Inner Dimension: W600 X D600 X H600 MM
External Dimension: W1340*D1085*H1765mm
Structure Mode: An integral structure with upper and lower cabinets.
Temperature Range: Room temperature +10℃-+150℃
Temperature Fluctuation: ±0.3℃
Heating Time: RT+10～+100°C for about 10 minutes
Temperature Uniformity: ≤±2℃ （No load, constant state)
Observation Window: Explosion-proof glass with explosion-proof membrane
Cooling Mode: Air cooling
Controlling Mode: Touch screen programmable control PLC, with USB interface, with RJ485 .interface can be connected to computer control, special network control software, convenient remote monitoring, data acquisition
Inner Chamber Material: 1.0MM thick SUS304# mirror stainless steel, sprayed with Teflon insulation
External Chamber Material: 1.2 MM thick Galvanized sheet, dusting pained with high temperature plasticized coating.
Power Supply: AC380V 50HZ
Safety Protection: Automatic explosion-proof pressure relief device, explosion-proof chain, tri-color light alarm device, remote control, smoke exhaust device, fire extinguishing device, etc.
Cable Port: ¢100mm each opening one with soft silicone plug and stainless steel cover
Extension Function: Provide communication protocol, able to accompanied use with charge and discharge machine
