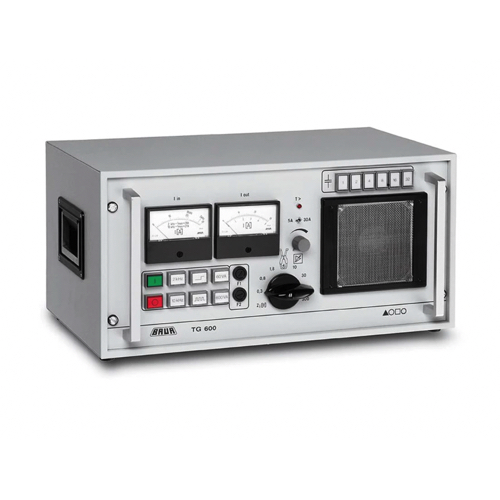

BAUR TG 600 ເຄື່ອງສົ່ງຄວາມຖີ່ສຽງ (30A)
ຜູ້ຜະລິດ: BAUR Model: TG 600 - ຕິດຕໍ່ພົວພັນ
Tracing and cable fault location:
Output power: On 2 levels; continuously adjustable on each power level
At 2 kHz: 60 VA / 600 VA
At 10 kHz: 45 VA / 450 VA
Max. output current: 30 A
Frequencies: Switchable between 2 frequencies*: * Other frequencies on request
2 kHz ±0.1%
10 kHz ±0.1%
Output impedance: On 8 levels: 0.3 / 0.8 / 1.8 / 4 / 10 / 30 / 100 / 300 Ω
Display:
Output current Iout in A
Primary current of the output transformer Iin in A
Overtemperature display
Output: Pole terminals on the back of the device
General:
Power supply:
110 – 120 V, 50/60 Hz
220 – 230 V, 50/60 Hz
240 V, 50/60 Hz
Power consumption: Max. 2,200 W
Device protection: Thermal overload protection
Dimensions (W x H x D): Approx. 505 x 255 x 300 mm
Weight: Approx. 38 kg
Ambient temperature (operational): -20°C to +40°C
Safety and EMC: CE compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing
Standard delivery
▪ TG 600 audio frequency transmitter
▪ Mains supply cord, 2.5 m
▪ Earth cable, 3 m, with earth terminal
▪ Connection cable, 3 m, with connection clips
▪ User manual
