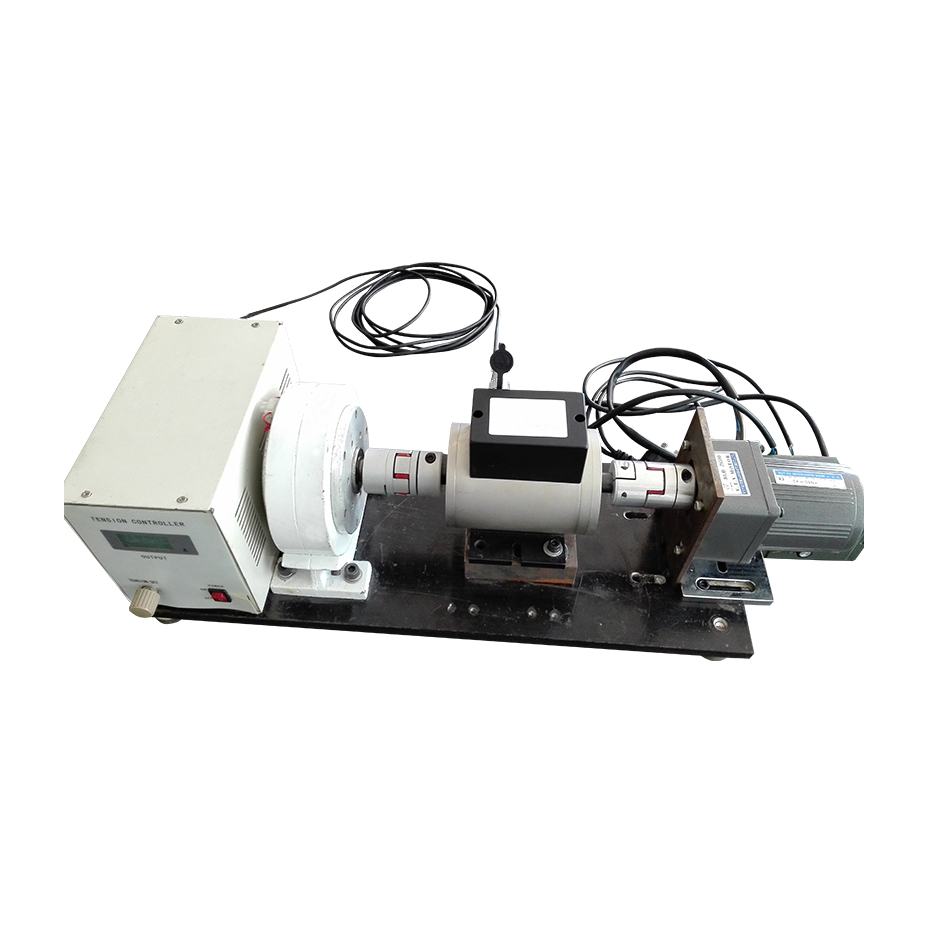

ALIYIQI ADN-300 ເຄື່ອງທົດສອບແຮງບິດແບບໄດນາມິກ (300N·m, 0.1N·m)
ຜູ້ຜະລິດ: ALIYIQI Model: ADN-300 - ຕິດຕໍ່ພົວພັນ
Max load: 300N·m
Index value: 0.1N·m
Torque accuracy: <± 0.5% F · S, <± 0.3% F · S, <± 0.1% F · S (optional)
Frequency response: 100μs
Nonlinear: ＜ ± 0.1% F · S
Repeatability: ＜ ± 0.1% F · S
Blacklash: ＜ 0.1% F · S
Zero drift: ＜ 0.2% F · S / year
Zero temperature drift: 500MΩ
Static overload: 120% 150% 200% (optional)
Operating temperature: －10 ~ 50 ℃ (-50 ~ 95 ℃ optional)
Storage temperature: －20 ~ 70 ℃
voltage: ± 15V ± 5% or 24VDC
Total current consumption: ＜ 200mA
Frequency signal output: 5KHZ ~ 15KHZ (0~5V/1~5V/0~10V/4~20mA optional)
Speed signal output: 60 pulses / rev (0~5V/0~10V/4~20mA optional)
Rated torque: 10KHZ ± 5kHZ (positive and negative bidirectional measured value),
Speed can be up to 1000rpm
