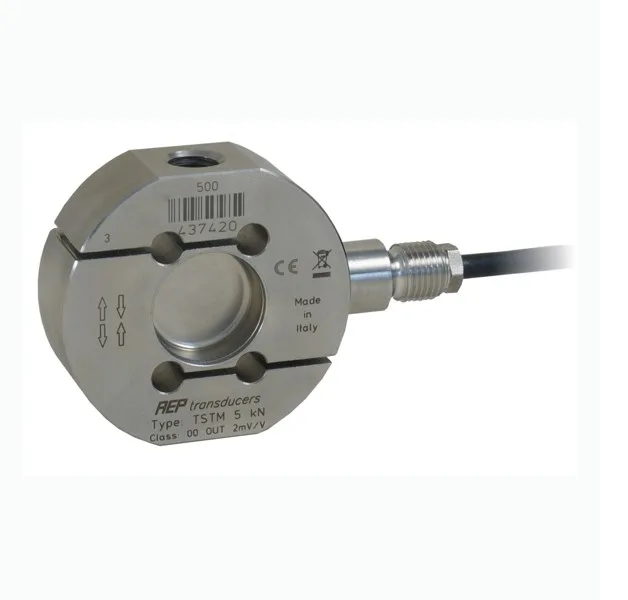

AEP Transducers TSTM ບັງຄັບ Transducer (ISO 376; Class 00; IP67; 5 kN)
ຜູ້ຜະລິດ: AEP Transducers Model: TSTM P/N: CTSTM635KNI005 - ຕິດຕໍ່ພົວພັນ
Accuracy Class: ISO 376 : 00
Nominal Load : 5 kN
Relative Errors (At Reading):
a) repeatability 0°-120°-240° (b): ≤±0.050%
b) interpolation (fc): ≤±0.020%
c) reversitivity (u): ≤±0.070%
d) zero (fo): ≤±0.010% F.S.
Linearity: ≤ ±0.02% F.S.
Hysteresis: ≤ ±0.025% F.S.
Temperature Effect (10°C):
a) on zero: ≤ ±0.025% F.S.
b) on sensitivity: ≤ ±0.025% F.S.
Nominal Sensitivity: 2 mV/V
Sensivity Tolerance: ≤ ±0.1% F.S.
Input Resistance: 350 ± 20Ω
Output Resistance: 352 ± 2Ω
Insulation Resistance: > 5 GΩ
Zero Balance: ≤ ± 1% F.S.
Recomended Supply Voltage: 10 V
Nominal Supply Voltage: 1-15 V
Maximum Supply Voltage: 18 V
Mechanical Limit Values Referred To Nominal Load::
a) service load: 120%
b) max permissible load: 150%
c) breaking load: > 300%
d) max transverse load: 50%
e) max permissible dynamic load: 50%
Displacement At Nominal Load: ∼ 0.2 mm
Reference Temperature: +23 °C
Temperature Nominal Range: -10 / +40 °C
Service Temperature: -10 / +70 °C
Storage Temperature: -20 / +80 °C
Weight: ~0.6kg
Protection Class (En 60529): IP67
Execution Material: Stainless Steel
Cable Length: 5 m
