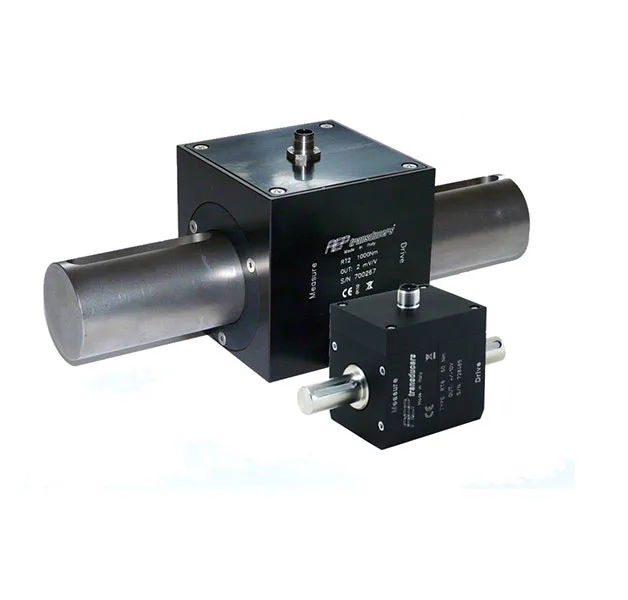

AEP Transducers RT8 ເຄື່ອງປ່ຽນແຮງບິດໝູນວຽນ (IP40; 5000 N•m)
ຜູ້ຜະລິດ: AEP Transducers Model: RT8 P/N: MRT85000NM - ຕິດຕໍ່ພົວພັນ
Nominal Torque: 5000 N•m
Linearity And Hysteresis : ≤ ± 0.2 %
Temperature Effect (1°C)::
a) on zero: ≤ ± 0.02%
b) on sensitivity: ≤ ± 0.02%
Nominal Sensitivity: ± 10V
Sensivity Tolerance: ≤ ± 0.2%
Nominal Power Supply: 17-24V
Max. Power Supply: 28V
Max. Absorption: 60mA
Loading Resistance: min. 3KΩ
Response Frequency: 1 kHz
Insulation Resistance: >2 GΩ
Zero Balance: ≤ ± 0.5%
Limit Mechanical Values:
a) service torque: 100%
b) max. permissible torque: 150%
c) breaking torque: >300%
d) highly dynamic torque: 70%
c) nominal speed: 4000 rpm
Reference Temperature: +23°C
Working Temperature Range: -10/+70°C
Storage Temperature Range: -20/+80°C
Protection Class (En60529): IP40
Sensor Execution Material: Stainless Steel
Case Execution Material Process: Aluminum
Coupling: Cylindrical
Electrical Connection : M12X1 Male 5 poles; 3 m cable with molded M12
Weight : ~ 6 kg
