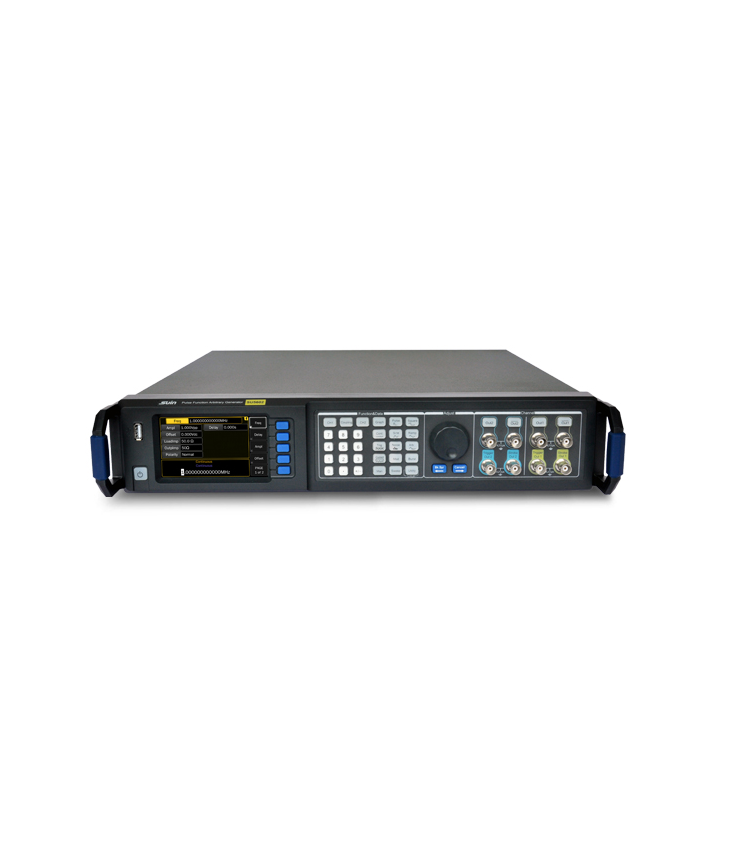

SUIN SU5602 脉冲函数任意波形发生器 (240MHz, output: 2, pattern generator)
制造商: SUIN Model: SU5602 - 联系
Output: 2
Patter Generator: Yes
Pulse
Frequency: 1μHz~120MHz
Resolution: 1μHz
Pulse Width: 4.1ns to (period - 4.1ns) typ.
Accuracy: ± 500ps ± 50ppm
Transition Time: 2.5ns~1000s (10%~90%)
Accuracy: ± 500ps（< 50ns, 1Vpp）
Sine
Frequency: 1μHz~240MHz
Resolution: 1μHz
Square
Frequenc: 1μHz~120MHz
Duty Cycle: 0.1%~99.9% (limited by frequency setting)
Ramp
Frequency: 1μHz~5MHz
Symmetry: 0.0%~100%
Noise
Bandwidth: 120MHz typ.
Amplitude Distribution: selectable Gaussian, user defined
Crest factor (peak/RMS) selectable: 3.1, 4.8, 6.0, 7.0 typ. (Gaussian distribution)
Repetition Time: 26 days
Arbitrary
DAC Sample Rate: 2GSa/s, Fixed
Length: 2~512k points
DAC Resolution: 14 bits
Frequency: 1μHz~120MHz
Resolution: 1μHz
PP Jitter: 1ns typ.
Modulation
AM, FM, PM
Carrier waveform: Sine, square, ramp, arbitrary
Internal modulation: Sine, square, ramp(up,50%,down),noise, arbitrary
Modulation frequency: 1mHz~10MHz
FSK
Carrier waveform: Sine, square, ramp, arbitrary
Internal modulation: 50% square
FSK rate: Internal: 1mHz~50MHz, External: DC~10MHz
Frequency Range: 1mHz~240MHz
PWM
Carrier waveform: Pulse
Internal modulation: Sine, square, ramp(up,50%,down), noise, arbitrary
Modulation frequency: Internal: 1mHz~10MHz, External: DC~10MHz,
Offset: 0%~99.9% pulse width
Sweep
Waveform: Pulse, sine, square, ramp, triangle, arbitrary
Sweep time: 100μs~500s
Start/Stop frequency: 1μHz~240MHz (Max frequency depends on selected waveform)
Burst
Waveform: Pulse, sine, square, ramp, triangle, arbitrary
Frequency: 1μHz~120MHz
# of waveforms in a burst: 2~(2^31)-1
Output
Max frequency: 120MHz pulse/240MHz sine
Type: Single-end or differential
Amplitude(50Ω~50Ω)
50mVpp~10Vpp (<50MHz)
50mVpp~5Vpp (≤120MHz)
50mVpp~3Vpp (>120MHz)
DC offset accuracy: Voltage (50Ω~50Ω) -10V~+10V typ.
Accessories
Power Cord: 1pcs
BNC cable: 2pcs
CD(Software+ User's Guide): 1pcs
SU5600 Series Pulse Function Arbitrary Waveform Generator Features
1 or 2 channel is selectable, differential outputs
Noise, with selectable crest factor, and signal repetition time of 26 days
14-bit, 2GSa/s arbitrary waveform, 512k samples deep arbitrary waveform memory per channel
Trigger, sweep and burst modes are supported.
Pattern generator with 16Mbit memory is optional
Communication interfaces USB Device, USB Host, LAN and GPIB are provided
