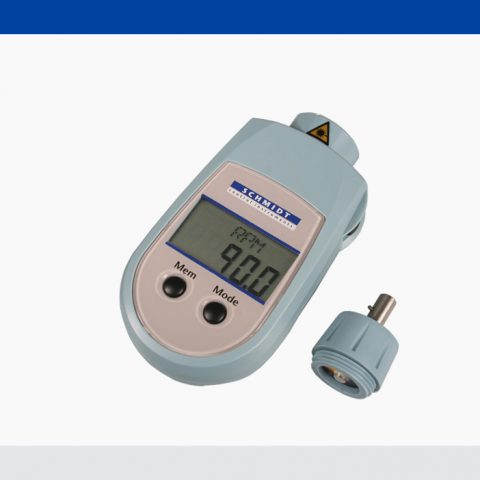

SCHMIDT PH-200LC 转速表 (6 - 25000 rpm or 6 - 99999 rpm; 1.0 - 3810 m/min; 0.2 - 99999 m)

Measuring range (Floating decimal point):

+ Revolution (non-contact): 6 – 99999 rpm

+ Revolution (contact): 6 – 25000 rpm

+ Revolution(counter): 1 – 99999 rev

+ Speed: 1 – 3810 m/min; 36 – 99999 in/min; 3 – 12500 ft/min; 1.0 – 4167.0 yd/min

+ Length: 0.2 – 99999 m; 0.5 – 99999 ft; 0.01 – 99999 yd

Accuracy:

+ Revolution: 6 – 599 ±1 rpm ±1 digit; 600 – 25000 rpm ±2 ±1 digit; 25001 – 9999 ±0.01 % of reading ±1 digit

+ Speed and length: ±0.4% of reading ±1 digit

Measuring units:

+ Revolution: rpm

+ Total rotations (counter): rev

+ Speed: m/min; ft/min; yd/min; in/min

+ Length: m; ft; yd

Memory: 14 readings (10 readings, MAX, MIN, mean and last) are stored for 5 minutes after last use

Laser, class 2: Output<1 mW, wave length 760 nm, max. measuring distance 2 m

Resolution: Length: 0.02362 m/Impulse, revolution: 1 Impulse/revolution

Display: 5 digit LCD 12 mm high

Display update: 1 s

Over range indicator: ”OVR” flashes at the display

Auto power off:  After 5 min of non-use

Power supply:  Battery 3 x 1.5 V Type AA, (approx. 50 h continuous use)

Low battery indicator:  ”LO BAT” flashes at the display

Temperature range:  5 – 45 °C

Air humidity:  85 % RH, max.

Housing:  Polyamide, fiber-reinforced

Dimensions:149 x 64 x 31 mm (LxWxH)

Weight, net (gross):  Approx. 180 g (400 g)
